Finned Tube Heat Exchanger


RANGE OF EXPERIMENTS TO BE CARRIED OUT:

  • To determine Heat transfer rate of heating & cooling.
  • To Calculate L.M.T.D.
  • To determine Overall Heat Transfer Coefficient Based on Internal &External Area of Tube.
  • To calculate Effectiveness of heat exchanger.
  • The experiments can be conducted at various values of input &calculation can be made accordingly.

TECHNICAL DESCRIPTION :

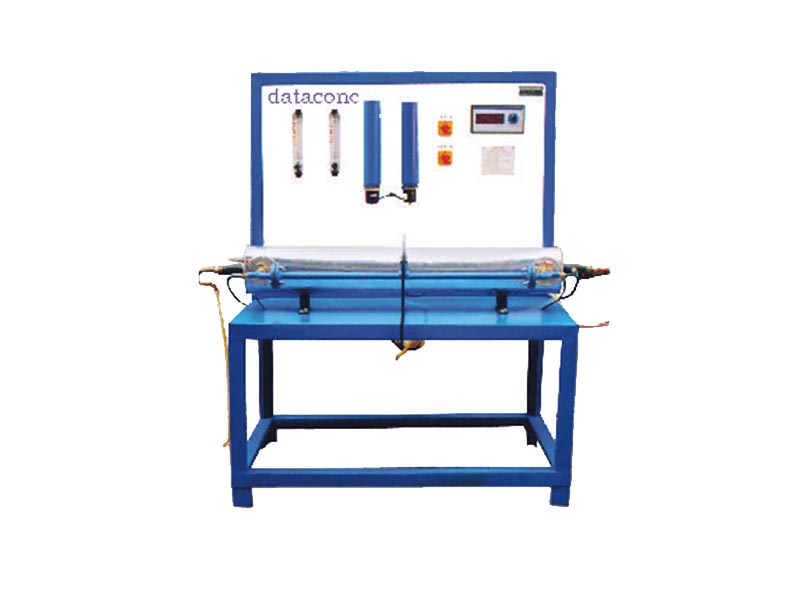

The apparatus consists of a tube in tube type concentric tube heat exchanger. The hot fluid is hot water which is obtained from an electrical geyser & it flows through the inner tube. The Inner Tube Is provided with circular fins throughout the Length. While the cold fluid is cold water, flowing through annulas.The flow rate of hot and cold water are measured by using rotameter. Temperatures at inlet and outlet are measured by using thermocouples and temperature indicator.

DIMENSIONS AND WEIGHT :

Size :1.2 m.(L)x 0.7m(W) X 1.5 m ( H )
Weight :Approx. 70 Kg

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz
Water: @10 lpm

SCOPE OF DELIVERY:

  • Experimental Setup
  • Instructional Manual

OPTIONAL FACILITY: Data logging Facility
