RANGE OF EXPERIMENTS TO BE CARRIED OUT:

The apparatus can perform following experiments on

• Watt type Governor.
• Porter type Governor.
• Proell type Governor.
• Hartnell type Governor.
  • Determination of characteristic curve of sleeve position against controlling force & speed.
  • Plotting of characteristic curves of radius of rotation.

TECHNICAL DESCRIPTION :

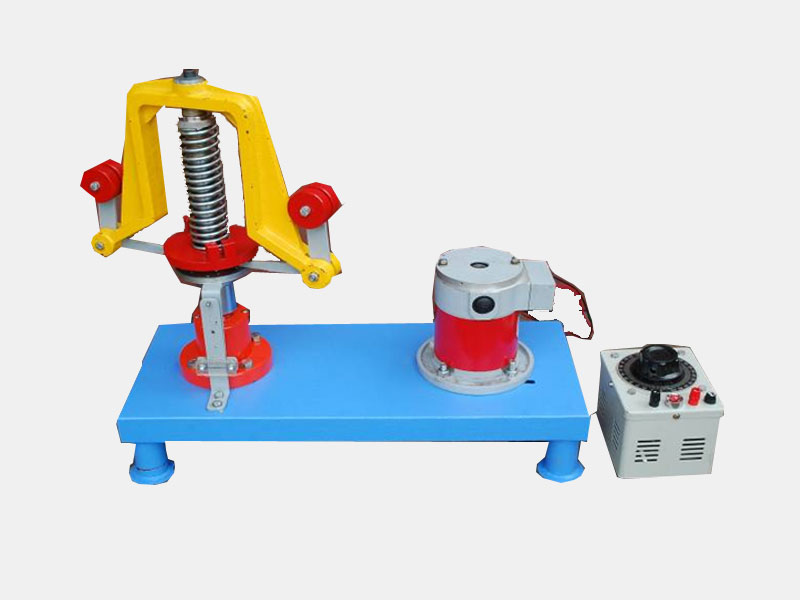

The drive unit consists of a small electric motor connected through ‘V’ belt to shaft drive. Motor & main shaft are mounted on a rigid M.S. Base plate in vertical fashion. The spindle is supported in ball bearings.
The optional governor mechanism can be mounted on spindle. Precise speed control is offered by the speed control unit, & counter hole over the spindle shaft allows the use of a handi tachometer to determine the speed. A graduated scale is fixed to the sleeve & guided in vertical direction

DIMENSIONS AND WEIGHT :

Size :0.5 m.(L)x 0.5 m(W) X 0.7m ( H )
Weight : Approx. 15 Kg

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual

OPTIONAL FACILITY: Data logging Facility
