RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Calculate the friction torque of bearing.
TECHNICAL DESCRIPTION :

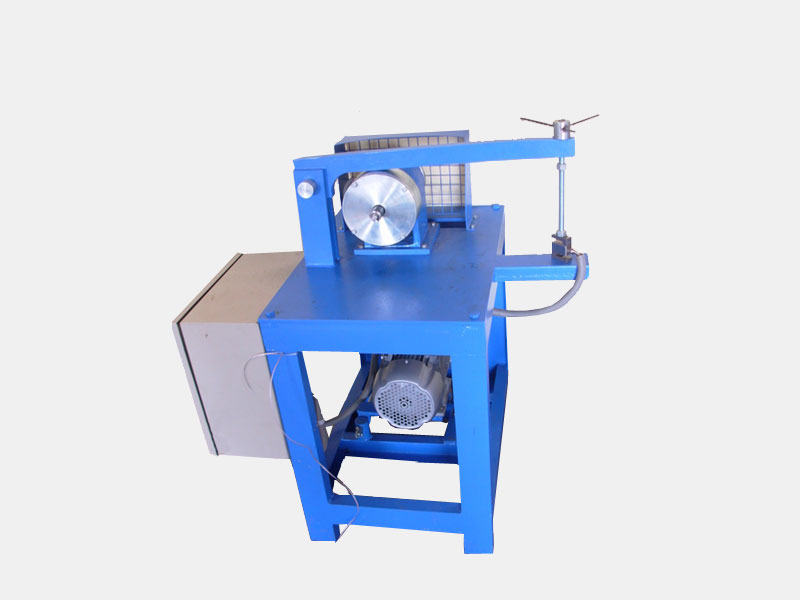

The apparatus consist of Bearing Mounting Fixture – Consists of a set of bearing races for bearings with parallelogram loading attachment .A Variable speed D.C Motor is provided. A rpm indicator provided for measurement of speed of motor. Load is applied by using lever and spring balance. A Fixture is provided for measurement of radial clearance of bearing.
DIMENSIONS AND WEIGHT :
Size :1.0 m.(L)x 1.0 m(W) X 1.5m ( H )
Weight : Approx. 65 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
