RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Determine the Transmissibility ratio of Vibration Table
TECHNICAL DESCRIPTION :

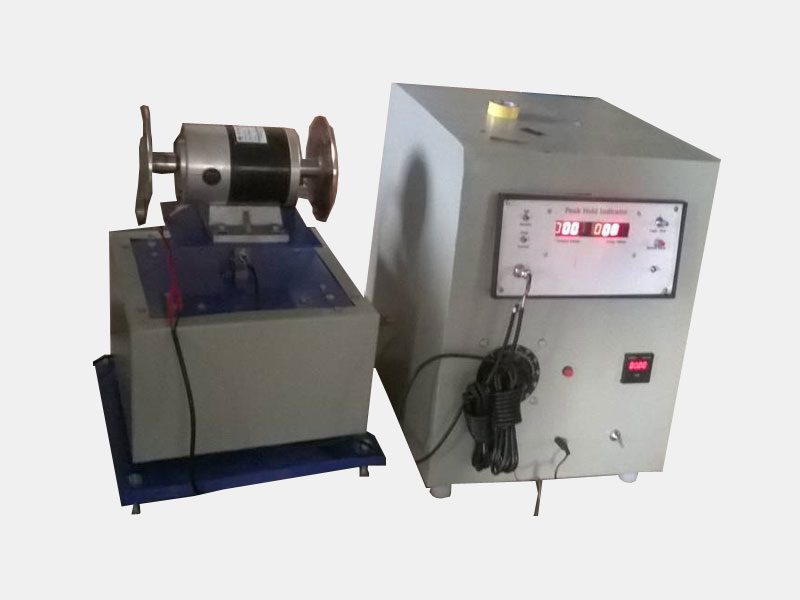

It consists of D.C. Motor with eccentric weights mounted on platform. The Platform is fixed with the springs. A load cells are provided for measurement of load. Speed of motor is varied by using autotransformer. Control panel consist of digital load indicator and rpm indicator with on / off switches.
DIMENSIONS AND WEIGHT :
Size :0.7 m.(L)x 0.7 m(W) X 0.7m ( H )
Weight : Approx. 45 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
