RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Study the Effect of speeds and feeds on the action of tool.
- To Study the Effect of Mechanical properties of work material on cutting forces.
- To observe the Values of forces exerted on machine components on jigs and fixtures, and effect of these forces on the geometrical accuracy of the work pieces.
TECHNICAL DESCRIPTION :

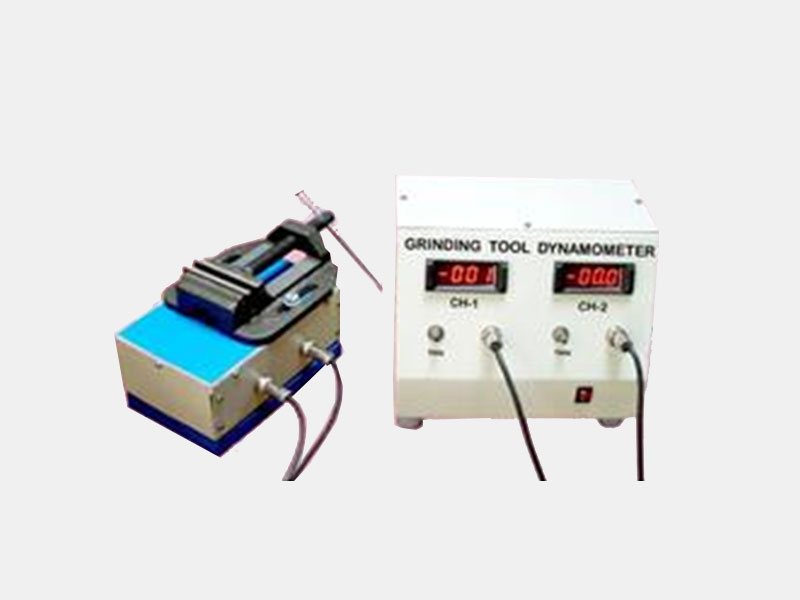

This is simple & easy to understand. With this unit students can evaluate cutting forces for speed & feed. The unit works with strain gauges. This set transmits the relevant data to the force indicator during Grinding operation.
DIMENSIONS AND WEIGHT :
Size :0.3 m.(L)x 0.3 m(W) X 0.3m ( H )
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
