RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Observe the transverse vibration of beam.
- To Verify the Dunkerley’s rule
TECHNICAL DESCRIPTION :

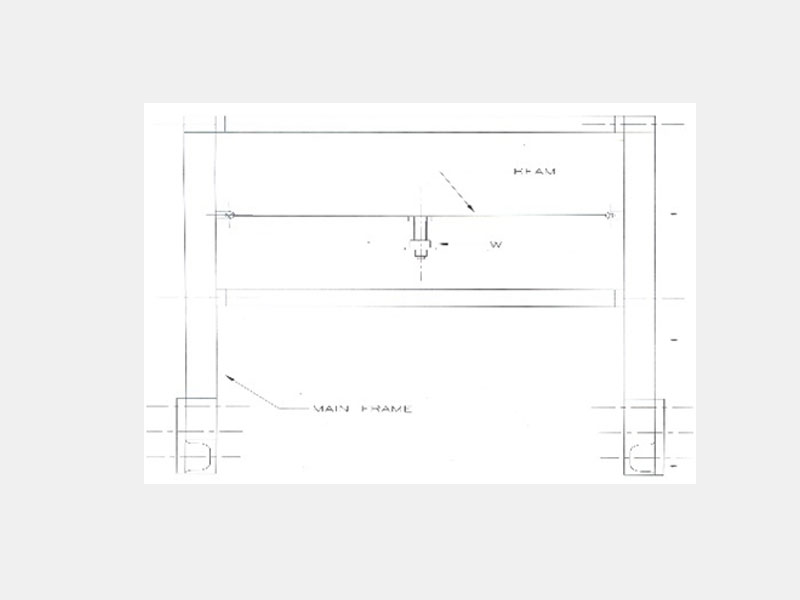

The setup consists of a rectangular section bar is supported in trunnion fittings at each end. Each trunnion is provided in a bearing carried in a housing. Each bearing housing is fixed to the vertical frame member. The beam carries at its center a weight plat form.
DIMENSIONS AND WEIGHT :
Size :1.0m.(L)x 0.7 m(W) X 1.5m ( H )
Weight : Approx. 30 Kg
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
