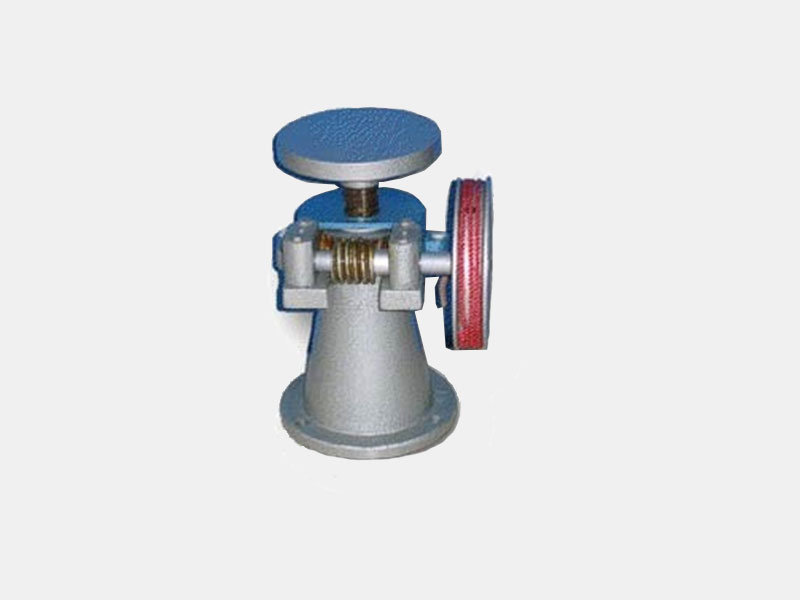

Compound Screw Jack


Compound Screw Jack

TECHNICAL DESCRIPTION :

Consisting of jack screw of 4 T.P.I. & double start carrying load platform. The nut of the screw is fitted on a pedestal bearing & is keyed on to a worm gear of 40 teeth operated by worm screw. The spindle of the worm screw is provided with an effort wheel of 15 cm dia

DIMENSIONS AND WEIGHT :

Size : 0.4 m.(L)x 0.4 m(W) X 0.4m ( H )

WEIGHT : Approx. 5 Kg



SCOPE OF DELIVERY :

  • Experimental Setup
  • Instructional Manual
