RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Plot the gear tooth profile.
TECHNICAL DESCRIPTION :

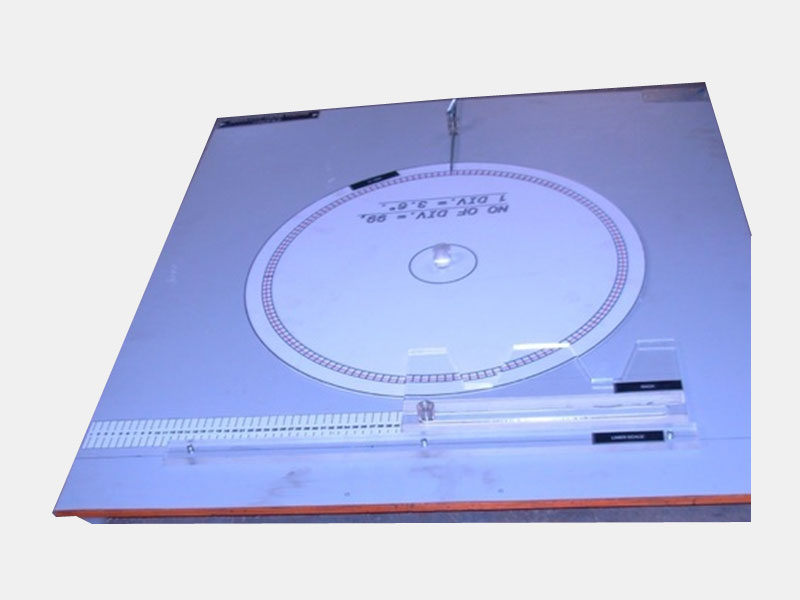

The apparatus consists of the process of cutting of involutes gear tooth by use of rack type cutter. It consists of three polystyrene discs A.B.C. having pitch circle dia. 450mm, 300 mm, 200 mm. A gear tooth profile with M = 1” can be traced out on a piece of paper placed between disc & cutter. An effect of interface & under cutting on correct profile of gear tooth can be studied from the profiles traced. Beard size 3’ x 2/2’ approx.
DIMENSIONS AND WEIGHT :
Size :0.5 m.(L)x 0.5 m(W) X 0.2m ( H )
Weight : Approx. 5 Kg
SCOPE OF DELIVERY:
