RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To study all components/Accessories used in Axial Flow Air Compressor.
- To study & determine Isentropic Work, Actual Work, Volumetric Efficiency, Isentropic Efficiency & Free Air Delivery at different delivery pressure.
- To Plot Volumetric Efficiency/Isentropic Efficiency against Delivery Pressure & comment on the nature of the plot.
TECHNICAL DESCRIPTION :

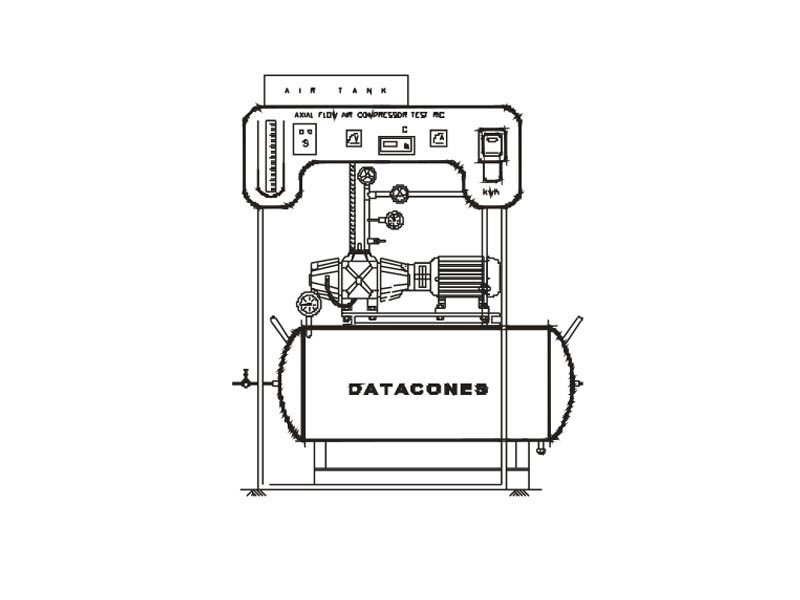

The test rig consists of Air Compressor with an air suction tank, is fitted with an orifice at one end & other end connected to cylinder. The orifice pressure tapping is connected to one limb of U -Tube manometer on panel. Thermocouple T1, T2, T3 reads temperature at inlet ( T1 ) outlet Temperature ( T2 ) & ( T3 ) records temperature of air in receiver. Energy meter is used to record the power input to motor & in turn the work required for compression. The control panel houses starter for motor, main switch, Temperature Indicator .
DIMENSIONS AND WEIGHT :
Size :1.5 m.(L)x 1.0 m(W) X 2.0 m ( H )
Weight :Approx. 200 Kg
SERVICE REQUIRED :
Power Supply : 440v, AC ,Three Phase , 50HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
