RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To study & determine Mach Number at different Pressure.
- To Plot Pressure variation along the length of the Diffuser.
- To determine Co-Efficient of Diffusion.
TECHNICAL DESCRIPTION :

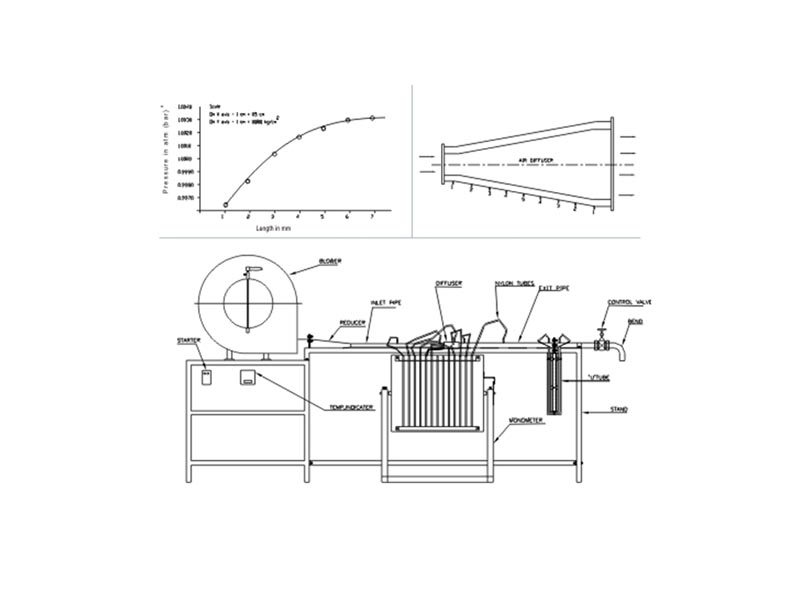

The test rig consists of centrifugal blower or compressor for pressurized air flow. The diffuser assembly with pressure tapings is fitted to the blower. A multi column manometer is provided for pressure measurement along the length of diffuser. A flow control valve is provided to control the air flow. An orifice plate is provided for measurement of air flow through the diffuser.
DIMENSIONS AND WEIGHT :
Size :2.0 m.(L)x 1.0 m(W) X 1.0m ( H )
Weight :Approx. 150 Kg
SERVICE REQUIRED :
Power Supply : 440v, AC ,Three Phase , 50HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
