RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To study Separating & Throttling Calorimeter.
- To Determine Dryness Fraction of steam by using Separating Calorimeter at different pressure.
- To Determine Dryness Fraction of steam by using Throttling Calorimeter at different pressure.
TECHNICAL DESCRIPTION :

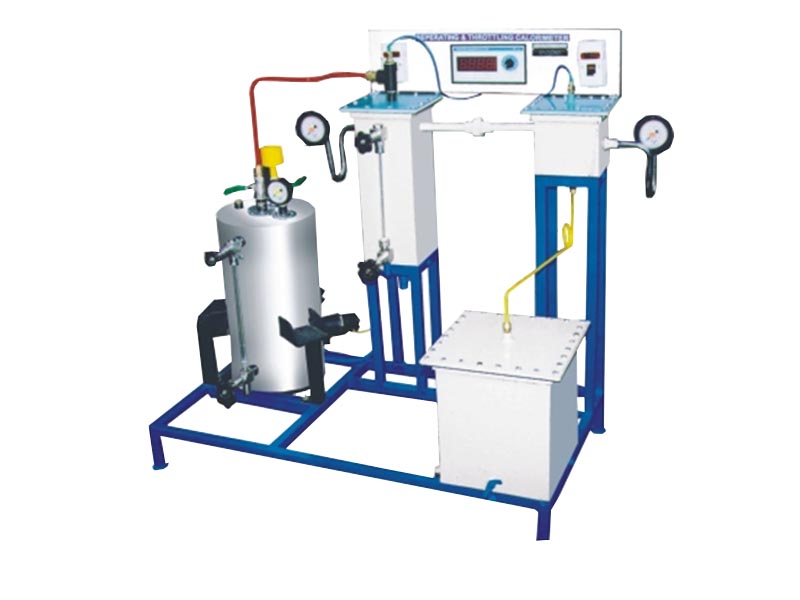

This separating and throttling calorimeter is designed for non-IBR boiler of capacity @ 100 to 300 kg/hr and pressure 4 to 10 kg/cm2 for throttling process orifice diameter is ½”.
The very wet steam from boiler is feed to the separating calorimeter. The quantity of water thus separated is collected in to the inner chamber provided with a graduated scale which indicated the quantity of water separated. The fairly dry steam moving upwards from the inner chamber is subsequently passed on the throttling calorimeter where it undergoes throttling due to orifice.
Two pressure gauges are provided one at steam main and other before orifice plate. Temperature indicator with thermocouple used for measurement of temperature.
DIMENSIONS AND WEIGHT :
Size :2.0 m.(L)x 1.0 m(W) X 1.0m ( H )
Weight :Approx. 100 Kg
SERVICE REQUIRED :
Power Supply : 440v, AC ,Three Phase , 50HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
