RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To study all components/Accessories used in Gasifier.
- To study the working of Gasifier & power generation.
- To study the working of Bio-Gas Engine.
- To determine Actual Out power of Gasifier & Engine, Input power of Engine & Gasifier, Heat Balance Sheet,Volumetric Efficiency of Engine, B.S.F.C. of Engine, Effectiveness of Gasifier & Engine, Overall Plant Efficiency.
TECHNICAL DESCRIPTION :

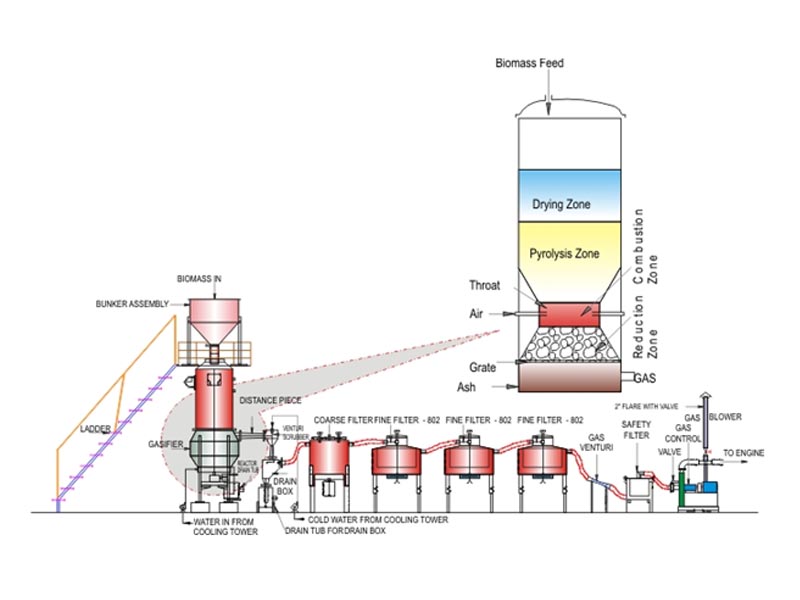

Biomass gasification is thermo-chemical conversion of biomass into a combustible gas mixture (producer gas) through a partial combustion route with air supply restricted to less than that theoretically required for full combustion. A gasifier system basically comprises of a reactor where the gas is generated, and is followed by a cooling and cleaning train which cools and cleans the gas. The clean combustible gas is available for power generation in diesel-gen-set . Gas flowrate is measured by using differential manometer. Temperature at different locations is measured by using thermocouple.
DIMENSIONS AND WEIGHT :
Size :3.5 m.(L)x 3.5 m(W) X 3.0m ( H )
Size :2. 0 m.(L)x 2.0 m(W) X 1.5m ( H ) for cooling pond
Weight :Approx. 1000 Kg
SERVICE REQUIRED :
- Power Supply : 440v, AC ,Three Phase , 50HZ
- Diesel : 200 Ltr.
- Tap water supply @50 lpm
- RCC CONSTRUCTION FOR COOLING POND
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
