Model Of Steam Engine

RANGE OF EXPERIMENTS TO BE CARRIED OUT:

To study all components used in Steam Engine.

TECHNICAL DESCRIPTION :

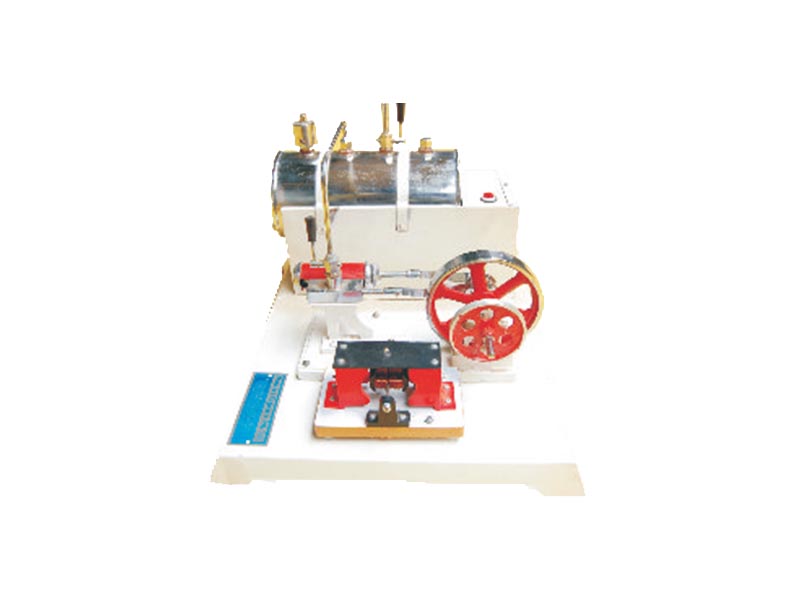

An all metallic working model. The brass cylinderis section cut, covered with a glass plate, complete withworking parts, piston slide valves, link motion & reversingmethod can be observed. The movement of the wheel is lightenough to demonstrate working seven by blowing withmouth

DIMENSIONS AND WEIGHT :

Size :0.4 m.(L)x 0.3 m(W) X 0.3m ( H )
Weight :Approx. 4 Kg

SCOPE OF DELIVERY:

model
