Drum Brake Cut Model

TECHNICAL DESCRIPTION :

To Study the Drum brake in working condition.

TECHNICAL DESCRIPTION :

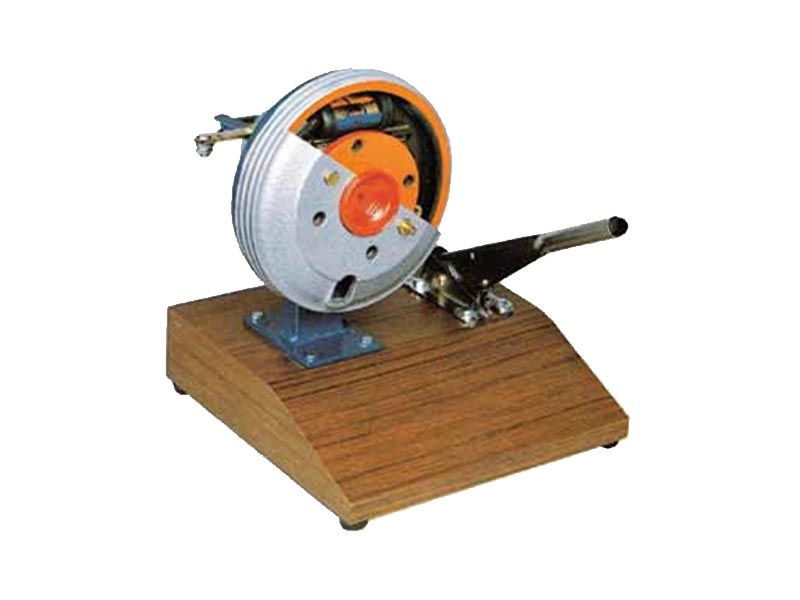

This model is made out of original parts such as Single Brake drum assembly, single master cylinder wheel cylinders Brake Shoes, etc., the model can be demonstrated by operating the lever provided.

DIMENSIONS AND WEIGHT :

Size : 0.5 m.(L)x 0.3 m(W) X 0.5m ( H )
Weight : Approx. 8 kg
SCOPE OF DELIVERY:

Experimental Setup
Instructional Manual
