TECHNICAL DESCRIPTION :
- To Study the Air Brake in working condition.
TECHNICAL DESCRIPTION :

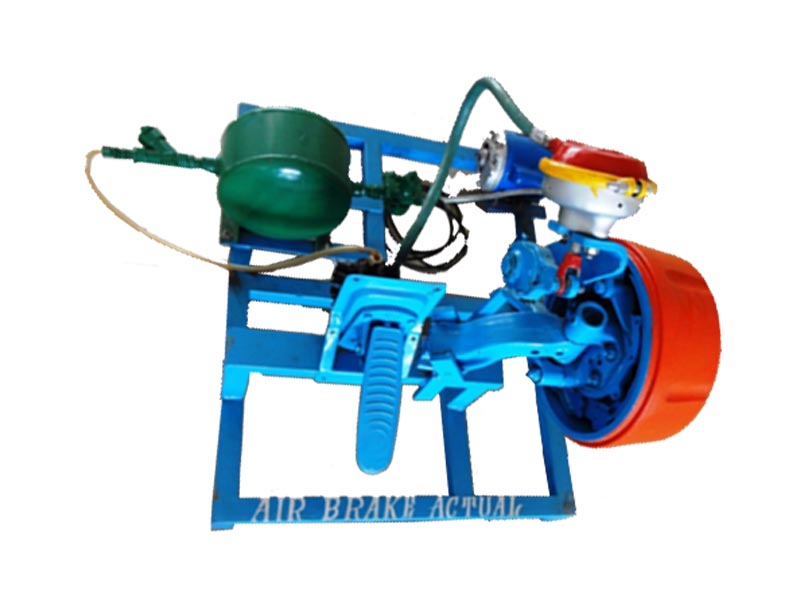

This model is made of Original parts such as Air compressor, Un-loader valve, foot valve, Booster, Wheel assembly, air tank, control valve etc .The entire system will be mounted on a sturdy iron frame. A F.H.P Single phase 220/230 V AC motor will be coupled to the compressor for generation of the air, which is used for the operation of the model.
DIMENSIONS AND WEIGHT :
Size : 1.3 m.(L)x 0.7 m(W) X 0.7m ( H )
Weight : Approx. 40 kg
SERVICE REQUIRED :
- Power Supply : 230v, AC ,Single Phase , 50HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
