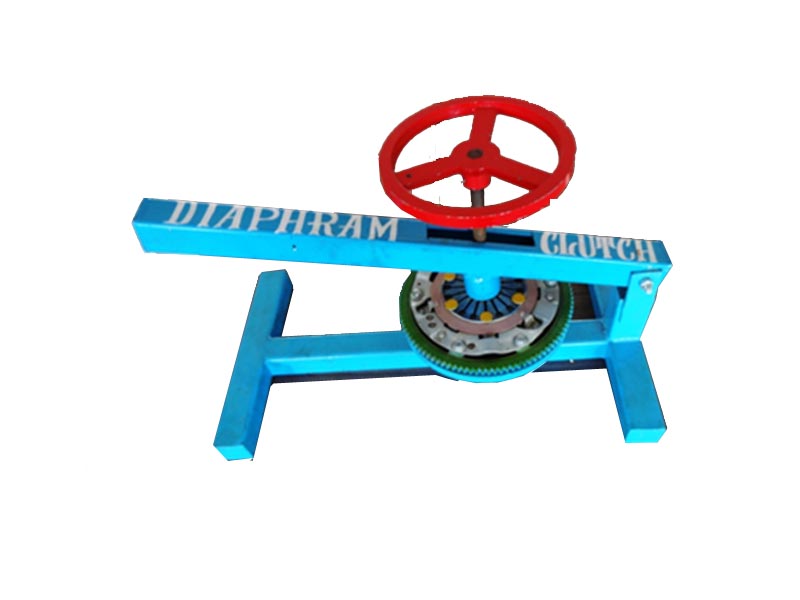

Diaphragm Type Clutch Model

TECHNICAL DESCRIPTION :

To Study the Diaphragm Type Clutch.

TECHNICAL DESCRIPTION :

This model is made out of original used parts, will be suitably sectioned and arranged to demonstrate the internal construction details showing the clutch system. The model will be suitably painted and the entire model is mounted on a sturdy ms frame with powder coated.

DIMENSIONS AND WEIGHT :

Size : 0.5m m.(L)x 0.4 m(W) X 0.3m ( H )
Weight : Approx. 5 kg
SCOPE OF DELIVERY:

Experimental Setup
Instructional Manual
