TECHNICAL DESCRIPTION :
It is very easy to form different trusses with the given material and find out stress in different members. The following fourteen types of models can be easily constructed :
- Single Cantilever
- Cantilever with four members
- Simple Roof Truss
- Roof Truss with Angled Tie Rods (Roof Truss ‘A’)
- A Composite frame wirk (Four in one frame)
- King Post Roof Truss
- Standard Roof Truss (Roof Truss ‘B’_)
- Roof Truss with loads or standard roof truss.
- Mansard roof truss
- Island roof truss
- N type girder
- Warren girder
- Framed Arch
- North light roof truss.

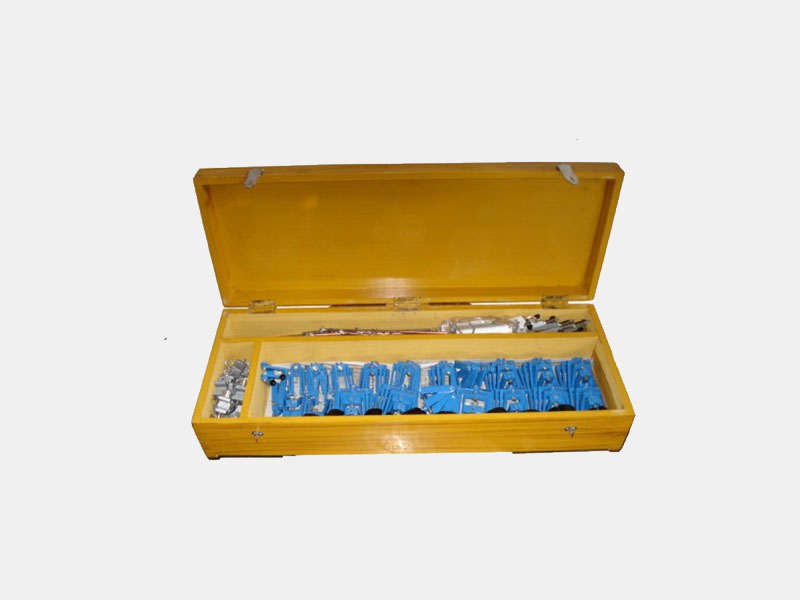

Details of accessories: - Stand and cross bars (4 bars & 8 stands) 4 Sets.
- Brackets fitted with stands. 4 only.
- Hinges (different) 22 only.
- Hinge holder hooks. 8 only.
- Cantilever rod with top caps 2 only.
- Member rods (Sizes marked) 37 only.
- Cap screws (Extra) 6 only.
- Weight hanger with platform 8 only.
- Weight platforms extra 2 only.
- Slotted weights 1 Kg. 10 only.
- Spring balances (2 of 20 kg. 2 of 10 kg. 4 of 5 kg. 8 only.
- Chains short and long 6 only.
- Boss brackets 2 only.
- Ring Brackets. 5 only.
- Hook brackets 4 only.
- Pulley brackets 3 only.
- Member balances to indicate tensile force 3 only.
- Member balances to indicate compressive force 3 only.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.3 m(W) X 0.5 m ( H )
WEIGHT : Approx. 6 Kg
SCOPE OF DELIVERY :
- Experimental Setup
- Instructional Manual
