TECHNICAL DESCRIPTION :
Moisture contents at which soil has smallest plasticity is called limit. For determination purpose plastic limit is defined as the water content at which a soil will just begin to crumble when rolled in to a thread of 3mm diameter.

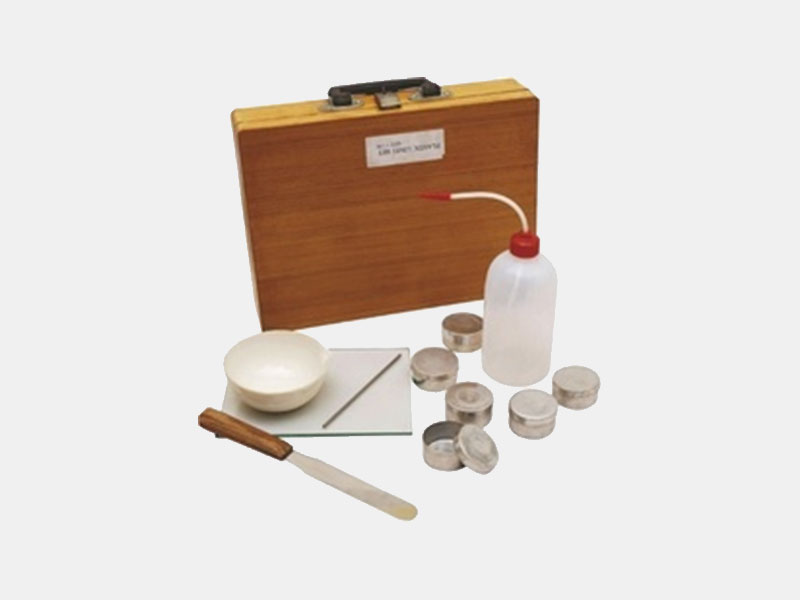

The complete set consists of one each:
- Glass plate 20cm x 15cm having round ends
- Brass or stainless steel rod 3mm dia. x 150mm long
- Flexible spatula 15 cm
- Set of 6 moisture containers
- Porcelain basin 150mm dia
- Plastic wash bottle 500ml
DIMENSIONS AND WEIGHT :
SIZE :0.3 m.(L)x 0.25 m(W) X 0.02m ( H )
WEIGHT : Approx. 1 Kg
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
