TECHNICAL DESCRIPTION :

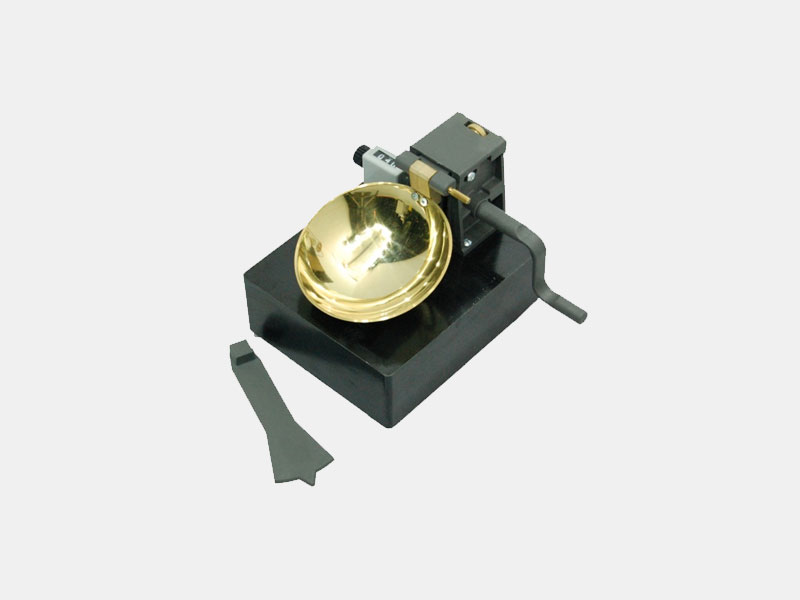

Liquid limit is the water content at which soil passes from zero strength to an infinite strength, hence the true value of liquid limit cannot be determined. For determination purpose liquid limit is that water content at which a part of soil, cut by a groove of standard dimensions, will flow together for a distance of 1.25cm under an impact of 25 blows in a standard liquid limit apparatus. It consists on a brass cup held on an adjustable bracket. The cup can be adjusted for a fall of 1 cm and can be raised and ropped on a rubber base of standard hardness by cam action. Complete with one Casagrande grooving tool, one ASTM grooving tool and a height gauge block.

DIMENSIONS AND WEIGHT :

SIZE :0.25 m.(L)x 0.25 m(W) X 0.2 m ( H )

WEIGHT : Approx. 2 Kg

SERVICE REQUIRED :

Power Supply :230 v AC , Single Phase 6amps , 50 hz

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
