TECHNICAL DESCRIPTION :

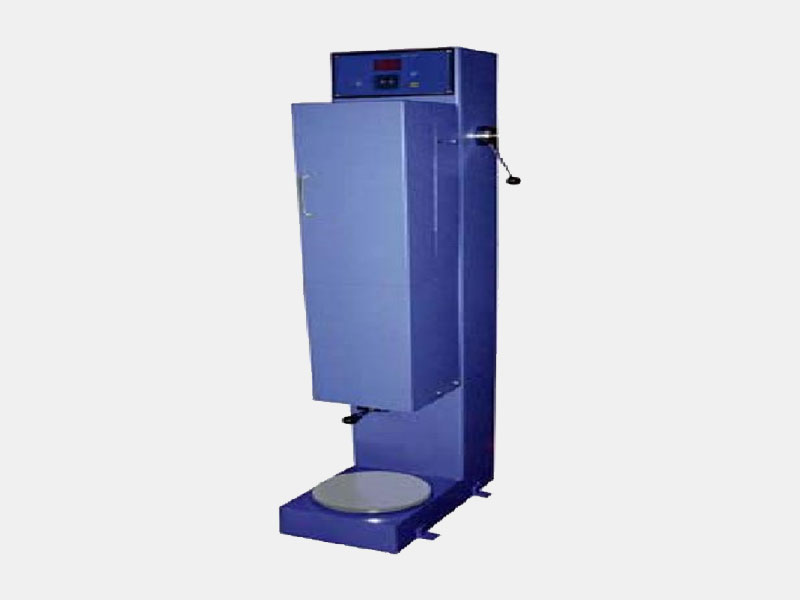

It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm diameter moulds. Two sets of Rammers are provided, one of 2.6 kg and arranged for310mm drop and other 4.89kg and arranged for 450mm drop .For compaction soil into 150mm dia moulds, 100mm face dia. Rammers having weight 2.6kg and 4.89kg are used. Where as for 100mm dia. moulds they are of 50mm dia. The rammer assembly is provided with a ratchet and pawl arrangement to lift it from the top of the soil layer. When the rammer ratchet and pawl arrangement to lift it from the top of the soil layer.
DIMENSIONS AND WEIGHT :
SIZE :0.5 m.(L)x 0.5 m(W) X 1.0 m ( H )
WEIGHT : Approx. 50 Kg
SERVICE REQUIRED :
Power Supply :230 V , AC , Single Phase ,16 Amp, 50 HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
