TECHNICAL DESCRIPTION :

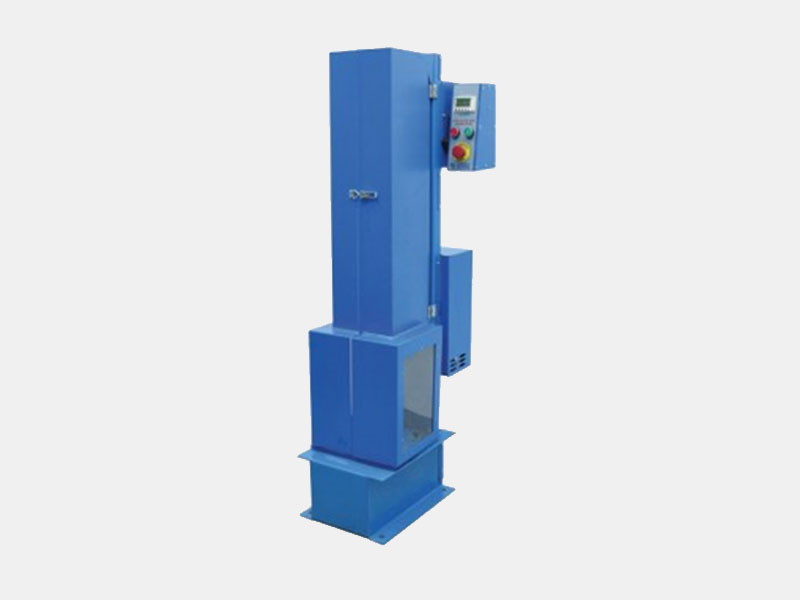

The Automatic Mechanical Compactor is designed to perform fast and accurate compaction of soil samples automatically. It is a motor driven mechanical compactor useful for soil compaction into 100mm or 150mm diameter moulds. Two sets of Rammers are provided, one of 2.6 kg and arranged for310mm drop and other 4.89kg and arranged for 450mm drop .For compaction soil into 150mm dia moulds, 100mm face dia. Rammers having weight 2.6kg and 4.89kg are used. Where as for 100mm dia. moulds they are of 50mm dia. Machine stops automatically after preset number of blows per compaction is completed
DIMENSIONS AND WEIGHT :
SIZE :0.5 m.(L)x 0.5 m(W) X 1.0 m ( H )
WEIGHT : Approx. 50 Kg
SERVICE REQUIRED :
Power Supply :230 V , AC , Single Phase ,16 Amp, 50 HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
