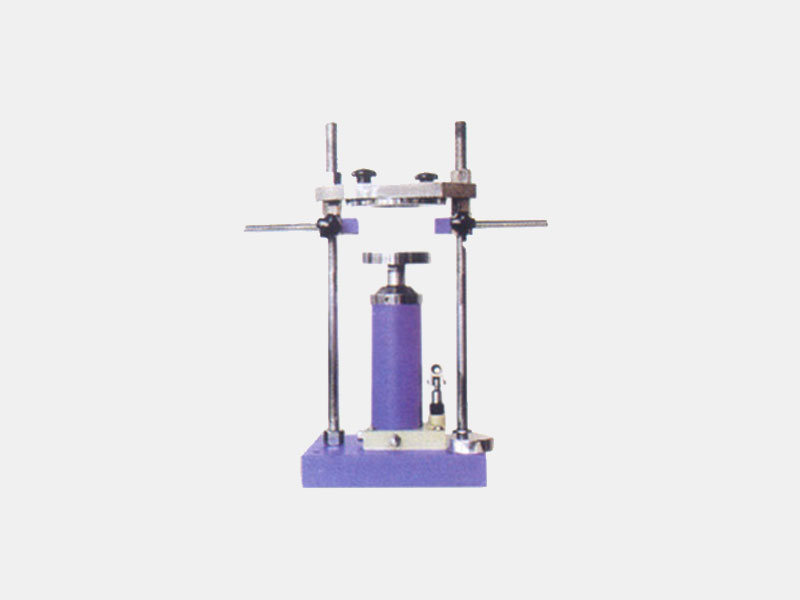

Universal Extruder Frame Hydraulic Type

TECHNICAL DESCRIPTION :

The extractor frame is used for taking out soil samples compacted or undisturbed, from100mm dia. and 150mm dia. cylinders such as Core Cutters, Proctor moulds, C.B.R.moulds etc. It consists of a 50Kn capacity hand operated, hydraulic jack mounted on a suitable frame. Two plungers, one for 4”/100mm dia. and the other of 6”/150mm dia .moulds are supplied Height of thrust plate is adjustable.

DIMENSIONS AND WEIGHT :

SIZE : 0.5 m.(L)x 0.5m(W) X 0.5 m ( H )

WEIGHT : Approx. 7 Kg
