TECHNICAL DESCRIPTION :

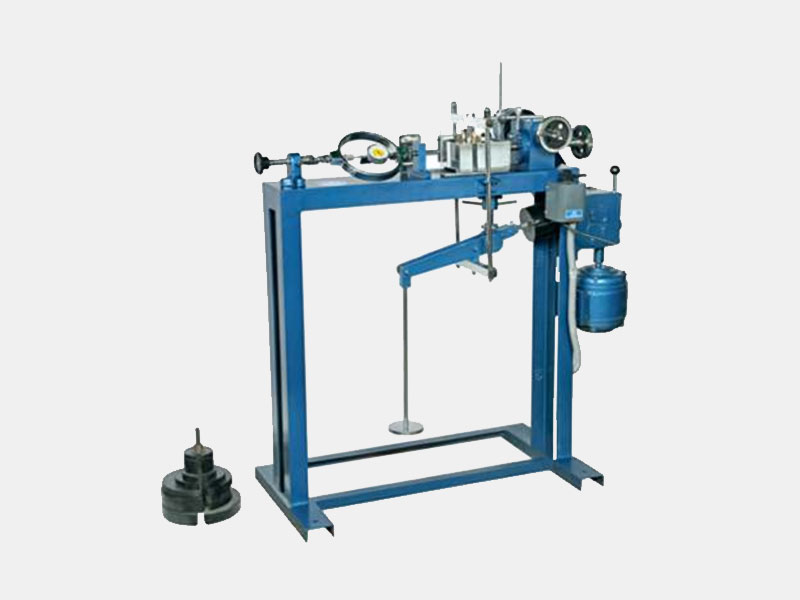

Direct Shear Apparatus - Motorised Model Supplied with loading yoke with direct and lever for applying load. Normal stress capacity 8Kg/Sq.cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading. yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing. Consists of loading unit, shear box assembly for 60 mm x 60 mm x 25 mm complete with two halves of loading pad, one base plate
DIMENSIONS AND WEIGHT :
SIZE : 1.0m.(L)x 1.0m(W) X 1.0 m ( H )
WEIGHT : Approx. 60 Kg
SERVICE REQUIRED :
Power Supply : 230 V , AC , Single Phase ,16 Amp, 50 HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
