TECHNICAL DESCRIPTION :

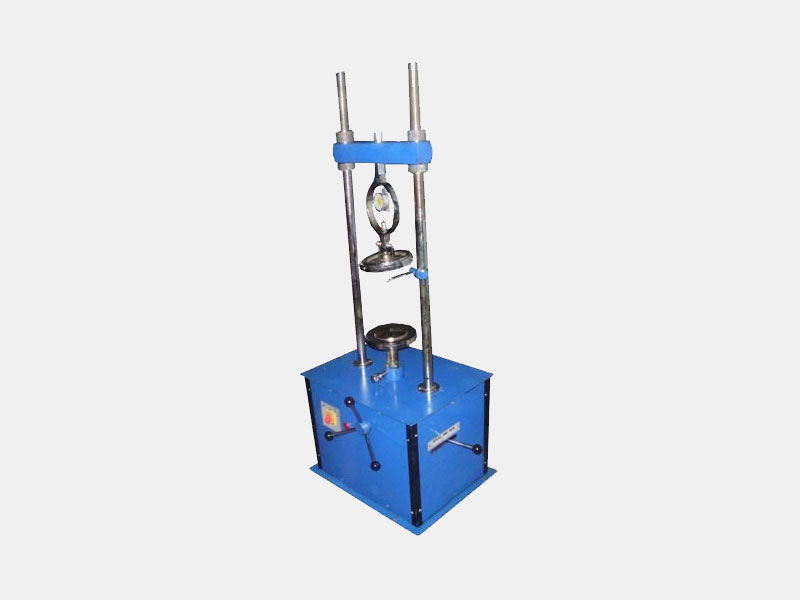

This is instrument for determining the unconfined compression strength of soil specimens of diameter ranging from 38mmto 100mm. Load on the sample is applied gradually by a hand operated load frame and loads are measured on a sensitive proving ring attached to the load frame. Comprises a screw operated load frame, cap.5000kg with a gear box and motor drive giving 1.25, 1.5, 2.5mm/min. Rates of strain, a pair of cone seating, adaptor for proving ring, and stain dial gauge bracket.
DIMENSIONS AND WEIGHT :
SIZE : 0.5m.(L)x 0.5m(W) X 1.0 m ( H )
WEIGHT : Approx. 40 Kg
SERVICE REQUIRED :
Power Supply : 230 V , AC , Single Phase ,16 Amp, 50 HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
