TECHNICAL DESCRIPTION :

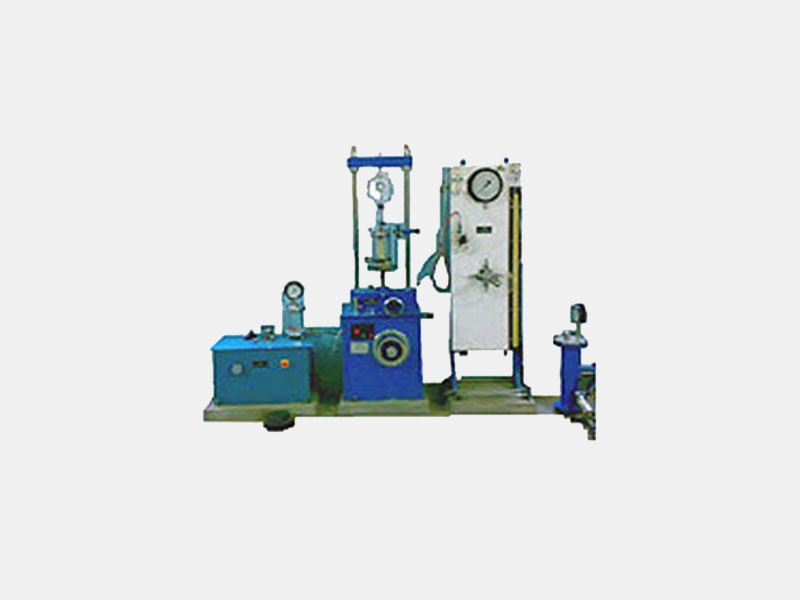

The complete set up for the Triaxial test essentially consist of the following.
- Triaxial Cell - for 38mm dia soil specimen
- Loading Frame - 50 KN with 6 speeds
- Proving Ring 200 kgf ( 2 KN) capacity with dial gauge 0.002mm X 5mm with calibration chart
- Dial Gauge 0.01mm X 25mm travel.
- Lateral Pressure assembly
- Bishop Pore Pressure Apparatus
DIMENSIONS AND WEIGHT :
SIZE : 1.0m.(L)x1.0m(W) X 1.0 m ( H )
WEIGHT : Approx. 80 Kg
SERVICE REQUIRED :
Power Supply : 230 V , AC , Single Phase ,16 Amp, 50 HZ
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
