TECHNICAL DESCRIPTION :

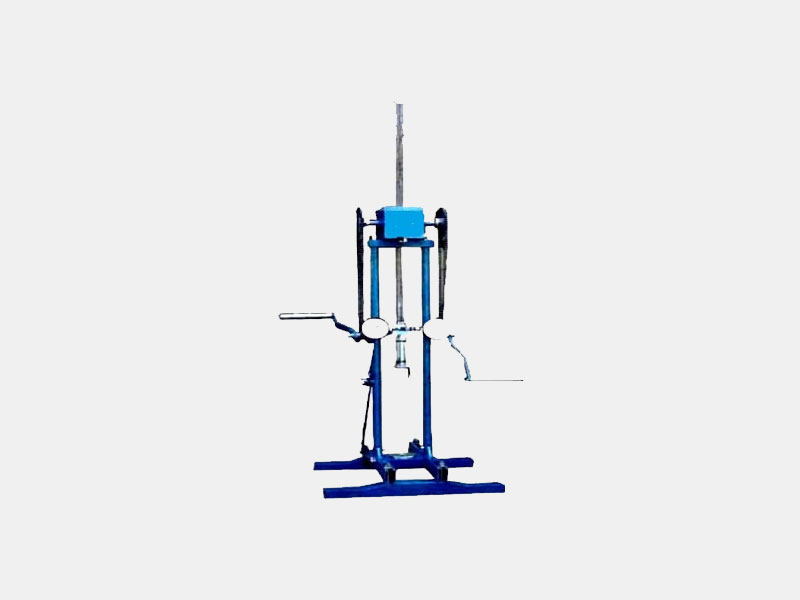

The drive is by means of a rack and pinion manually through a gearing arrangement. The gear box and pinion are fixed on two handles, sprockets and chain arrangement. The movement of the rack is guided by a bracket (attached to the rack) and two pillars. The penetration resistance i.e. the pressure is indicated on hydraulic gauges through a hydraulic measuring head.Two pressure gauges
DIMENSIONS AND WEIGHT :
SIZE : 0.5m.(L)x 0.5m(W) X 0.5 m ( H )
WEIGHT : Approx. 10 Kg
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
