TECHNICAL DESCRIPTION :

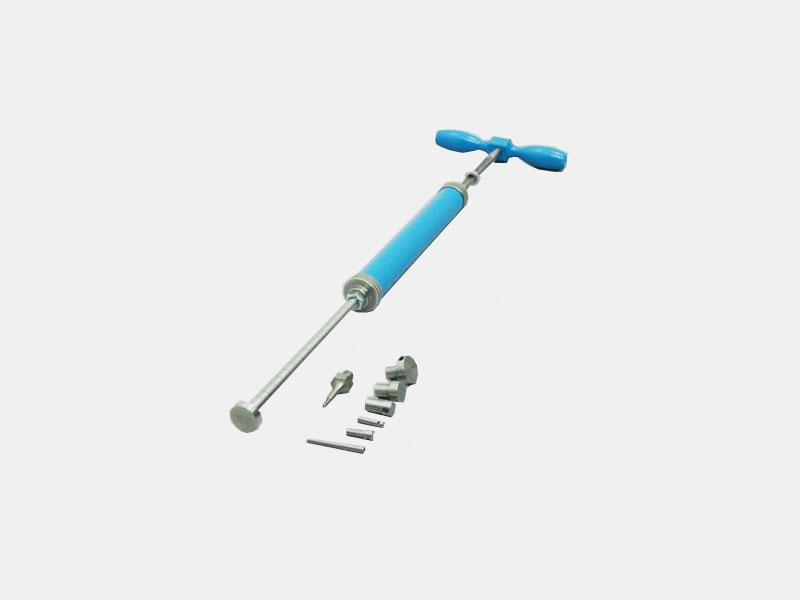

It is used for finding out the rate of hardening of mortar sieved from concrete spring and a stem graduated from 0-70 kg x 1 kg. Six inter changeable penetration needles of areas 645, 323, 65 32 and 16mm sq. Is provided. The penetration resistance is measured by the force exerted to penetrate the mortar by 25mm and is indicated by a sliding ring on the stem, which is graduated. Needle shanks are marked at every 12.5mm.Complete in a wooden carrying case
DIMENSIONS AND WEIGHT :
SIZE :0.3 m.(L)x 0.2 m(W) X 0.1 m ( H )
WEIGHT : Approx. 1 Kg
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
