TECHNICAL DESCRIPTION :

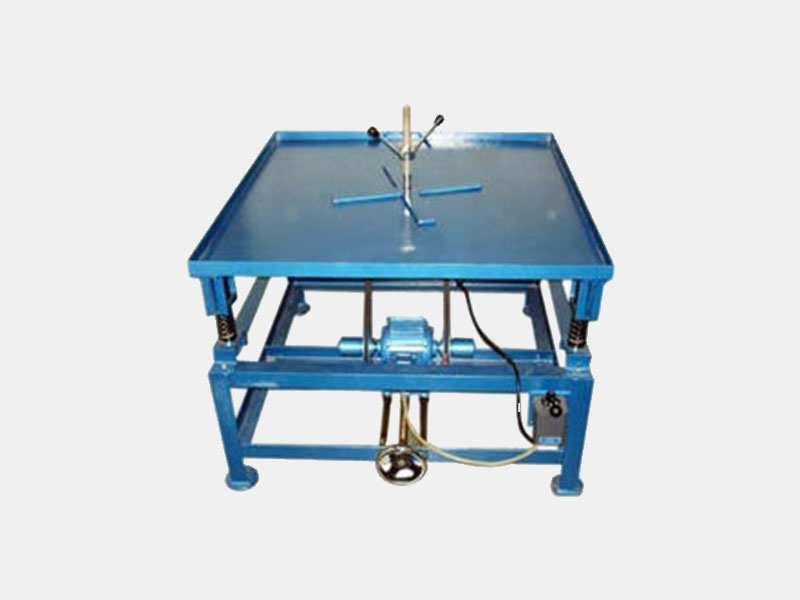

It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means off-balance masses rotating on a shaft of a vibrator clamped to the underside of the tabletop. The table top is 50cm x 50cm and has stops along its edges to prevent moulds from walking off the table during vibration . A cross arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the between a maximum of 3600 vibrations down to 2600 vibration per minute. A speed regulation handle is provided for increasing or decreasing frequency. A switch is provided for starting the motor. Suitable for operator on 230 Volts, A.C. Single Phase, 50 Cycles.

DIMENSIONS AND WEIGHT :

SIZE :1.5 m.(L)x 1.0 m(W) X 1.0 m ( H )

WEIGHT : Approx. 50 Kg

SERVICE REQUIRED :

Power Supply :Single Phase 230 v AC , 6 Amp , 50 Hz
