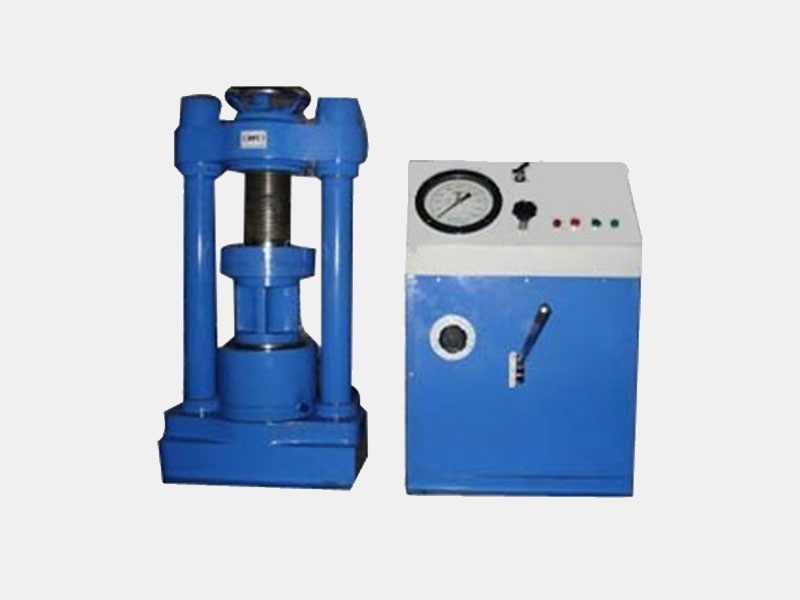

TECHNICAL DESCRIPTION :

Compression tests are used to determine how a product or material reacts when it is compressed, squashed, crushed or flattened by measuring fundamental parameters that determine the specimen behavior under a compressive load.

RANGE OF EXPERIMENTS :

• To Perform Compression Test

TECHNICAL DESCRIPTION :

• Loading accuracy as high as + 1%
• Straining at variable speeds to suit a wide range of materials.
• Continuous roll autographic recorder supplied as standard to enable study of the behavior of materials.
• Motor driven geared shaft for quick and effortless adjustment of cross-head-to facilitate rapid fixing of test specimen.
• High reading accuracy due to large size and design of dial.
• Wide range of standard and special, including load stabilizer.
• Large effective clearance between columns enables testing of standard specimen as well as structures.
• Simple controls for ease of operation.
• Robust straining frame of an extremely rigid construction.
• Safe operation ensured by means of safety devices.
• Load ranges can be adjusted by auto load selector knob.

TECHNICAL DATA :

• Loading Range : 2000 KN
• Least Count : 1KN
• Max. Clearance Between Platen : 370 mm
• Max. Clearance Between Side Platen : 340mm
• Platen Size : 220 mm
• Piston Stroke : 210mm

SERVICE REQUIRED :

Power Supply : 440 V, 50 Hz, A.C.Three Phase , Foundation As Per Drawing

DIMENSIONS AND WEIGHT :

SPACE REQUIRED : 1.5 m. ( L) x 1.0 m (W) X 1.5 m (H).

WEIGHT : Approx. 400 Kg
