TECHNICAL DESCRIPTION :

One of the durability test of concrete is to determine permeability of water through specimen. Permeability apparatus is used for determining the permeability of cement mortar and concrete specimens of 15cm cubes cast in the laboratory.

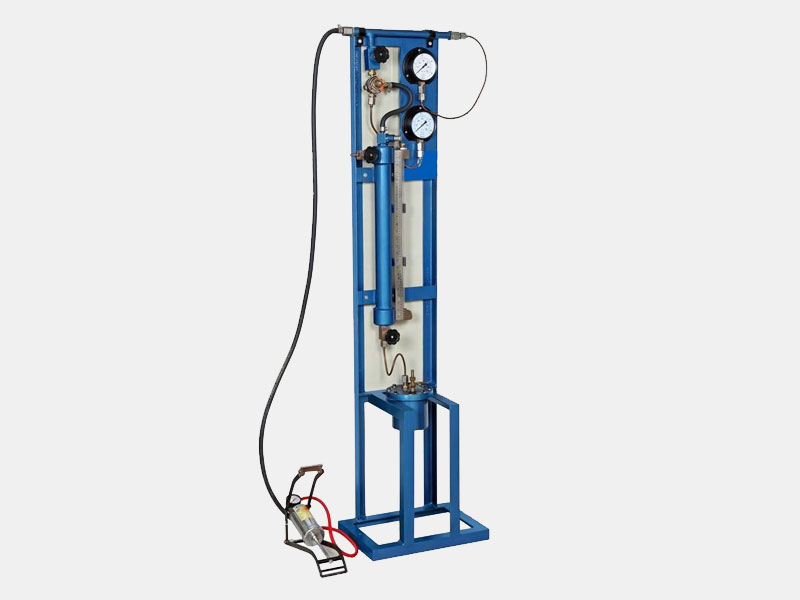

The concrete permeability apparatus comprises of a brass / gunmetal cell of Square/Round cross-section mounted on a stand and a pressure chamber is connected to the cell through copper tubing and TT-connector mounted on the stand with sleeve packed valve and rubber hose pipe with end connections. The cell assembly consists of one base plate, one metal funnel and one top plate. The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure . A foot pump and a pressure is tube supplied to develop pressure in the chamber The chamber. Apparatus is supplied with a measuring cylinder

SERVICE REQUIRED :

Power Supply : Foundation As Per Drawing

DIMENSIONS AND WEIGHT :

SPACE REQUIRED : 1.0 m. ( L) x 1.0 m (W) X 1.5 m (H).

WEIGHT : Approx. 70 Kg
