TECHNICAL DESCRIPTION :

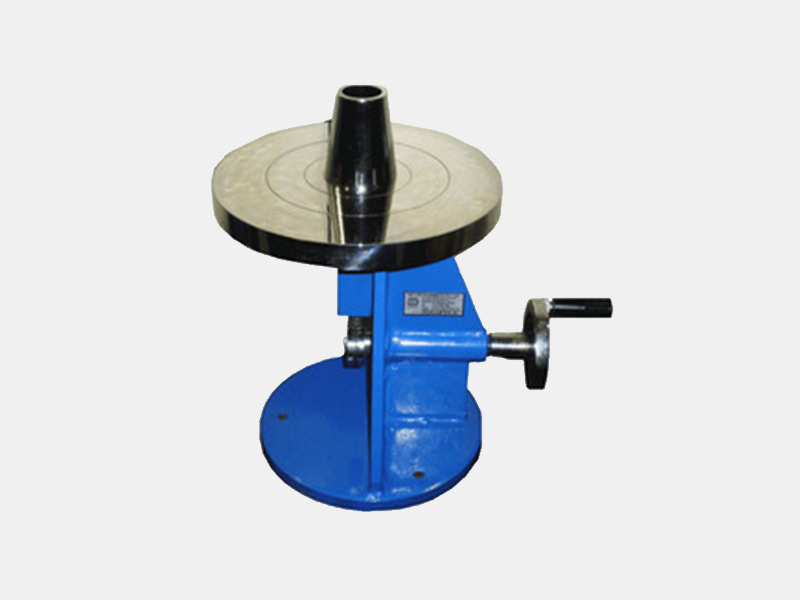

This is used for determining the workability of building limes. The flow table consists of a 30 cm dia. polish steel plate with 3 engraved annular circles 7, 11 and 19cm dia. The table top is arranged for a freefall of 12.5mm by a cam action. Supplied complete with one brass conical mould, 65mm i.d. at base and40mm i.d. at top, height of the mould90mm
DIMENSIONS AND WEIGHT :
SIZE :0.3 m.(L)x 0.2 m(W) X 0.3m ( H )
WEIGHT : Approx. 10 Kg
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
