TECHNICAL DESCRIPTION :

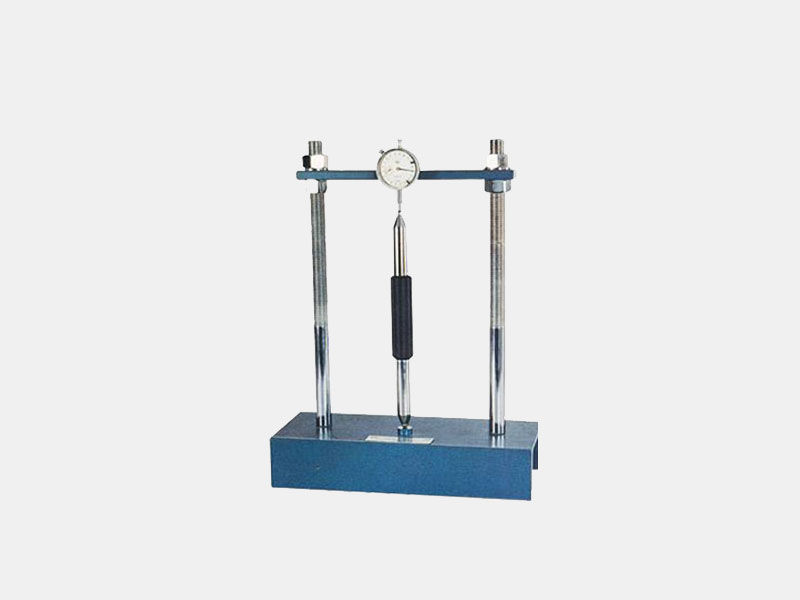

It is used to measure the drying shrinkage of concrete autoclave expansion of Portland cement and potential expansive reactivity of cement aggregate combinations in mortar bars during storage, on self drying.The instrument consists of a channeled base on which two vertical pillars are fixed. An adjustable cross plate is at the top. A dial gauge, reading to .002mm x 12mm. Can be located upon a6.5mm. dia. ball or other reference point cemented in the specimen. On the base there is similar recessed seating in which can be placed a second ball or reference point in the specimen. Complete with a stainless steel standardization bar with insulated grip and with 6.5mm dia. Balls mounted in the ends. The unit can be supplied with an Electronic Dial Gauge at extra cost if indicated at the time of placing the order

DIMENSIONS AND WEIGHT :

SIZE :0.3 m.(L)x 0.3 m(W) X 0.3m ( H )

WEIGHT : Approx. 3 Kg

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
