TECHNICAL DESCRIPTION :

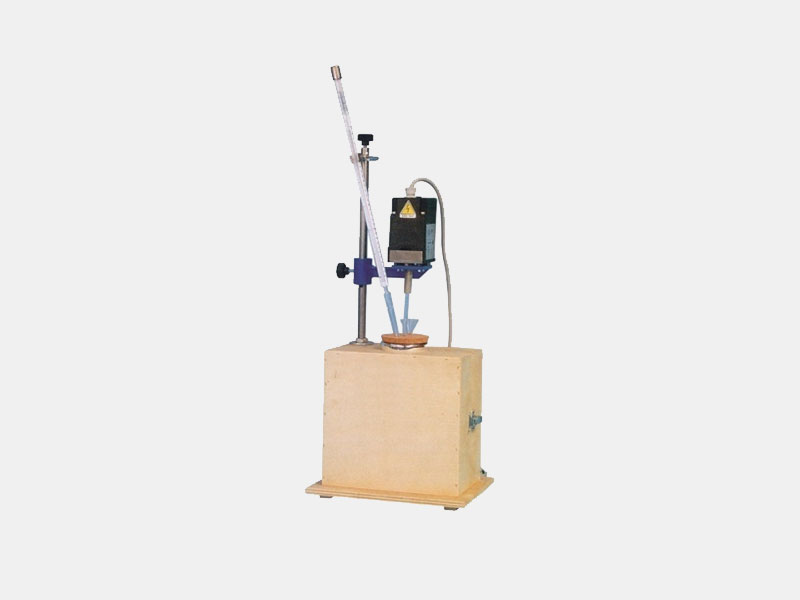

This equipment is required to determine the heat of hydration of cement as expressed in calories per gram.A wide mounted double walled vacuum flask with a stop cock & a insulating container for the flask . A Beckman thermometer held tightly by the cock stopper A constant speed stirrer , A funnel is fitted to the cock stopper for introducing the sample
All the above to combine to form the calorimeter for the determination of heat of hydration of cement. Suitable To Operate on230 V A.C. 50 Hz
DIMENSIONS AND WEIGHT :
SIZE :0.3 m.(L)x 0.3 m(W) X 0.4 m ( H )
WEIGHT : Approx. 5 Kg
SERVICE REQUIRED :
Power Supply : Single Phase 230 v , AC , 6 Amp , 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
