TECHNICAL DESCRIPTION :

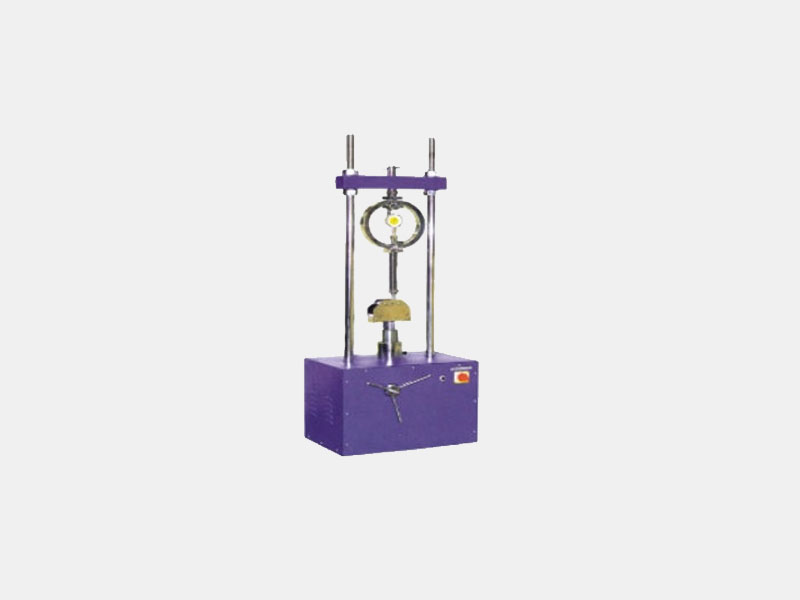

It is used for testing 40mm x 40mm x 160mm mortar specimens for flexural strength. by single point loading.
It is motorised, Mechanical unit. The speed is adjusted so that the load increase on the specimen is between4 to 6 kg/sec. A flexural test attachment for keeping the specimen in position is also supplied. This consists of two rollers10mm. Diameter and spaced 100 mm apart and a third roller of the same diameter equidistance from the first two and for transmitting the applied load to the opposite face of the prism. The unit is for operation on 230 volts, Single Phase, and50 Cycles A.C. supply. Load are measured on a proving ring fitted with a sensitive dial gauge.

DIMENSIONS AND WEIGHT :

SIZE :1.0 m.(L)x 1.0 m(W) X 1.0 m ( H )

WEIGHT : Approx. 60 Kg

SERVICE REQUIRED :

Power Supply : Single Phase , 230 v ,AC , 16 Amp , 50 Hz.

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
