TECHNICAL DESCRIPTION :
Used For determining stripping value of bituminous mixes having aggregate size: 1.0mm to 75 micron.

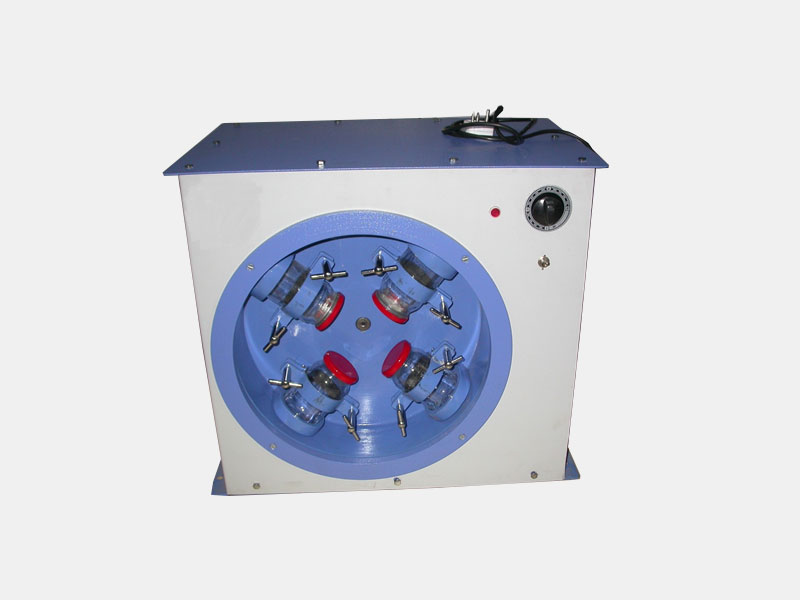

A circular tray rotates in a vertical plane at a rate of approximately 100 R.P.M. by an electrical geared motor. 4 bottles of approximately 400 cc are mounted 0 on this circular tray at an angle of 90. To each other with their mouth towards center of the tray. A time switch is provided. Suitable for operation on 230 V A.C. Single Phase
DIMENSIONS AND WEIGHT :
SIZE :0.5 m.(L)x 0.5m(W) X 0.6m ( H )
WEIGHT : Approx. 30 Kg
SERVICE REQUIRED :
Power Supply : 230 v AC , Single Phase 6amps , 50 hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
