TECHNICAL DESCRIPTION :

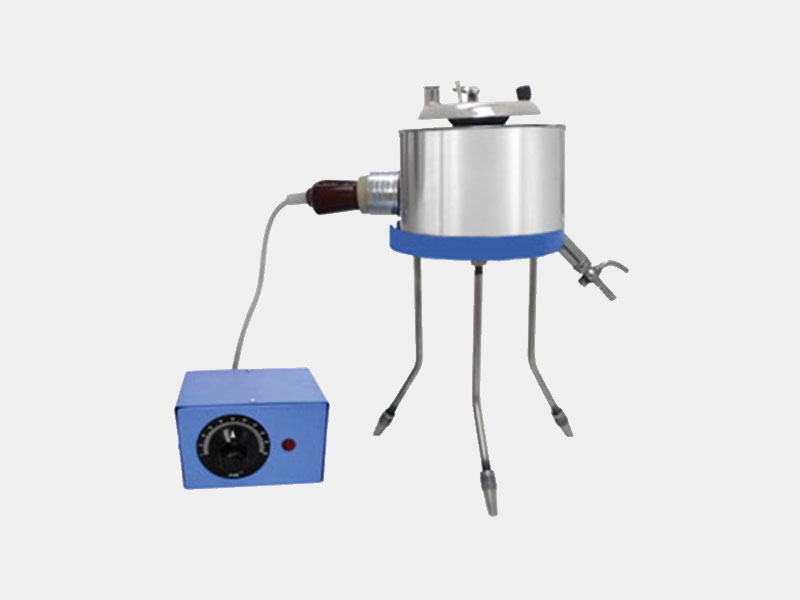

The apparatus consist of bath with cup of 10 mm or 4 mm orifice and sleeve stirrer with ball lifting clip and ball .The bath is fitted with an immersion heater to take the water to the required temperature and a drain valve. The temperature is controlled by energy regulator or voltage varrier.(extra cost) The assembly is kept on suitable stand with leveling screws.
DIMENSIONS AND WEIGHT :
SIZE :0.4 m.(L)x 0.4 m(W) X 0.4m ( H )
WEIGHT : Approx. 4 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
Lubricating Oil : 1 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
