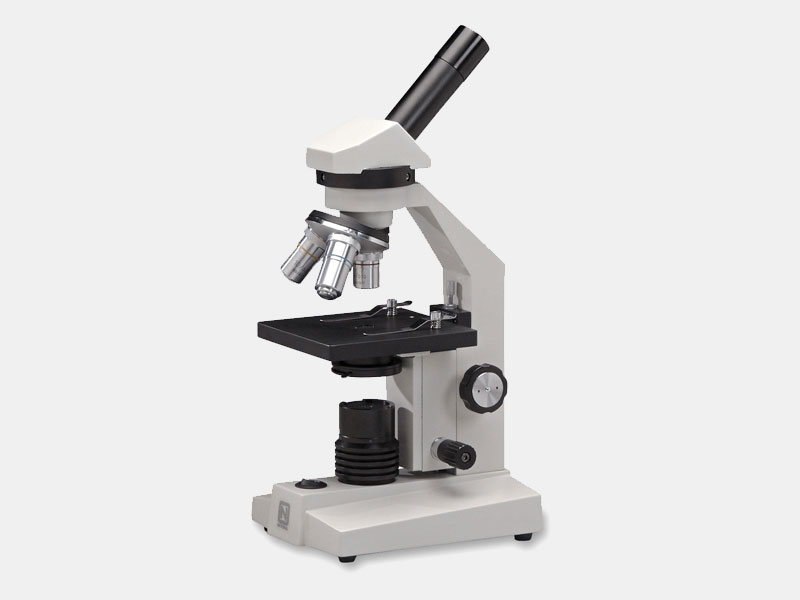

Monocular Inclined Microscope

Description :

Modular type-with built in illumination. (Export version) fitted with 1.2NA Sub stage condenser with lris diaphragm adjustable by rack and pinion motion. Coaxial graduated stage for X-Y motion of slide.

Optical outfit :

2 eyepieces 10XWF, H15X.

4 Achromatic objectives :

4X, 10X, 45X (spring), 100X oil (spring) 6V/20W imported halogen lamp and intensity variable transformer. Complete with cleaning duster cloth and PVC dust cover.
