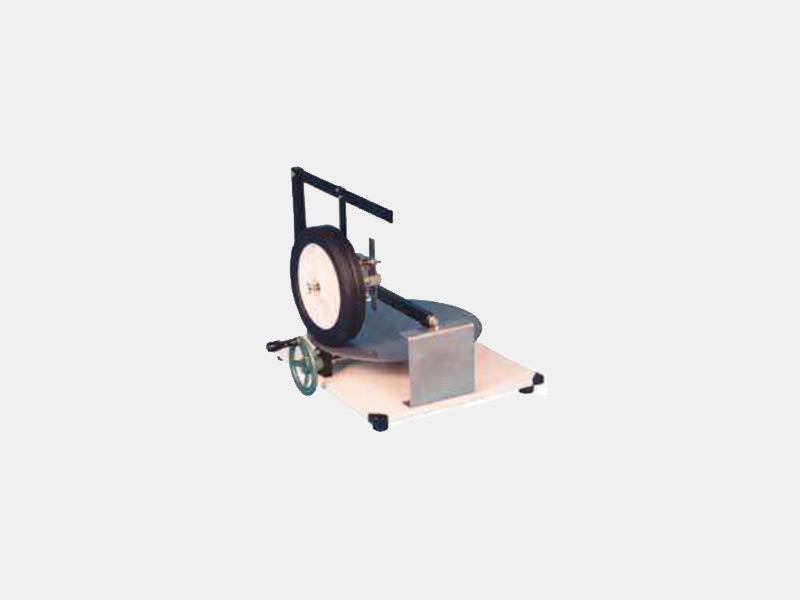

Caster Camber Kingpin Inclination
Range of Experiments:
- To show how castor, camber and king pin inclination are set up.
- To show how the steering linkage is related to toe-in.
- To demonstrate the effect of wheel offset.
- To observe the dynamic stability of the wheel under running conditions.
- To measure the forces on steering link.
- To show how the weight of the car affects self centering.
DESCRIPTION :
- Bench mounted.
- Variable caster, camber, king pin inclination.
- Dished road wheels.
- Variable wheel offset.
- Demonstrates center point steering.
- Rolling road enables study of wheel stability.
DIMENSIONS AND WEIGHT :
Size ::0. 3 m.(L)x 0.3m (W) X 0.3 m ( H )
WEIGHT : Approx. 20 Kg
SCOPE OF DELIVERY :
- Experimental Setup
- Instructional Manual
