DESCRIPTION :

A Thin film of liquid running down the inside of vertical pipe, with gas flowing either concurrently or counter currently, constitutes a wetted wall tower. In this the liquid is dispersed into thin film .Measurement of the rate of evaporation of the liquid in to the gas stream over known surface permits calculation of the mass transfer coefficients for the gas phase

RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To study the Wetted wall column
• To calculate the Gas phase mass transfer coefficient

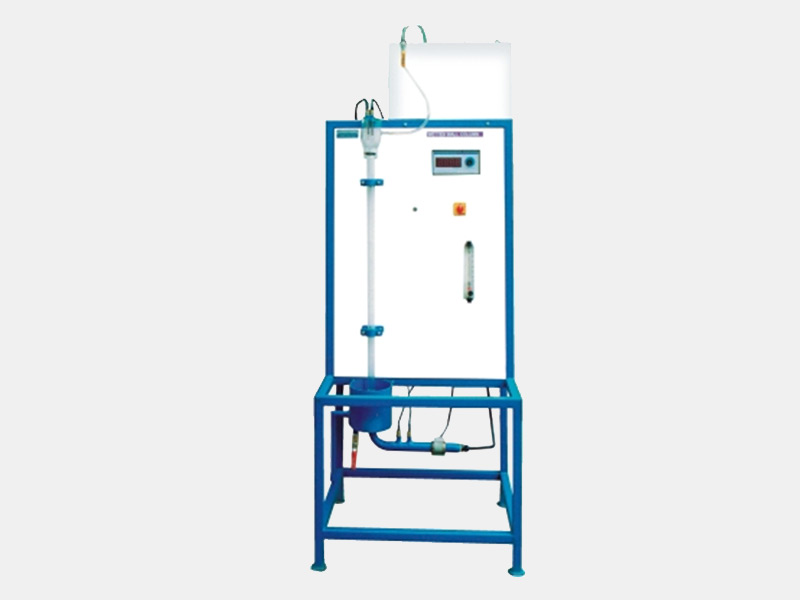

EXPERIMENTAL SETUP :

• Column : Borosilicate Glass Column
• Flow Measurement : 2 No. Pre calibrated Rota meter
• Feed Tank : 1 No. of stainless steel feed tank
• Heater : Nichrome wire heater
• Digital Temp Indicator : 0 – 200 0 C
• Temp Sensor : CR/AL Type
• Pump : FHP Submersible pump
• Piping : SS , PVC
• Setup Mounting : On sturdy MS stand with powder coated

SERVICE REQUIRED :

Air Supply : @ 6 CFM, at 4 Kg /cm2

Power Supply : 230V, 50Hz, A. C

CHEMICALS REQUIRED:

NaOH, HCL, Phenolphthalein indicator ,Distilled water

SPACE REQUIRED :

1.5 m. ( L) x 1.0 m (W) X 2.5 m (H).

WEIGHT : @ 55 Kg
