DESCRIPTION :

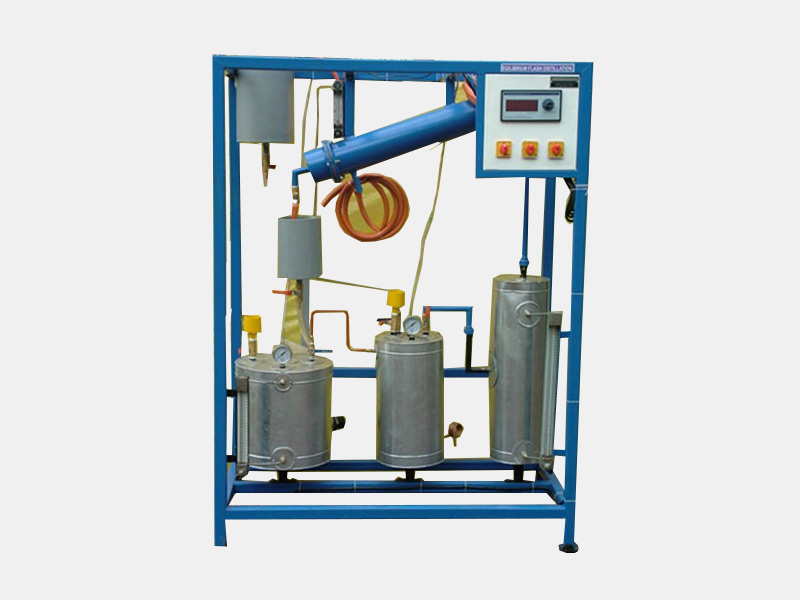

The apparatus consists of an overhead tank which contains liquid undergoing distillation. The liquid from the tank is metered through the Rota meter & then goes inside the copper coil in the boiler. Steam condenses outside the coil. The liquid then enters the flash chamber after being throttled by a valve. In the flash chamber the liquid flashes into vapors partially. The vapors are left to the condenser where they are condensed by water. Condensed vapors are collected & quantity measured. The enriched liquid at the bottom of the chamber is collected & measured.
RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study equilibrium flash distillation
EXPERIMENTAL SETUP :
- Reboiler : Material Stainless Steel
- Column : Material Stainless Steel
- Reflux Drum : Material Stainless Steel
- Condenser : SS , Shell and Tube type Condenser
- Flow Measurement : 1 No. Pre calibrated Rota meter
- Packing : Rasching Ring.
- Heating Mantle : Aluminum body with fiber cloth
- Digital Temp Indicator : 0 – 400 0 C.
- Temp Sensor : CR/AL Type
- Distillate Receiver : Material Stainless Steel
- Vacuum Pump : Compactable capacity
- Piping : SS , PVC
- Setup Mounting : On sturdy MS stand with powder coated
SERVICE REQUIRED :
Water Supply : 2 lpm
Power Supply : 440 V, 50 Hz, A.C.
Specific Gravity Bottle
CHEMICALS REQUIRED:
Methanol Or Ethanol ,
SPACE REQUIRED :
1.5 m. (L) x 1.0 m(W) X 2.0 m (H)
WEIGHT : @ 65 Kg
