DESCRIPTION :

An A.S.T.M. distillation is a simple distillation using The equipment consists of Borosilicate glass round bottom flask as distillation still . The distillation is carried out by heating the still. The vapors coming from the column is going in to the condenser. The distillate is collected in measuring flask.

RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To A.S.T.M. Distillation

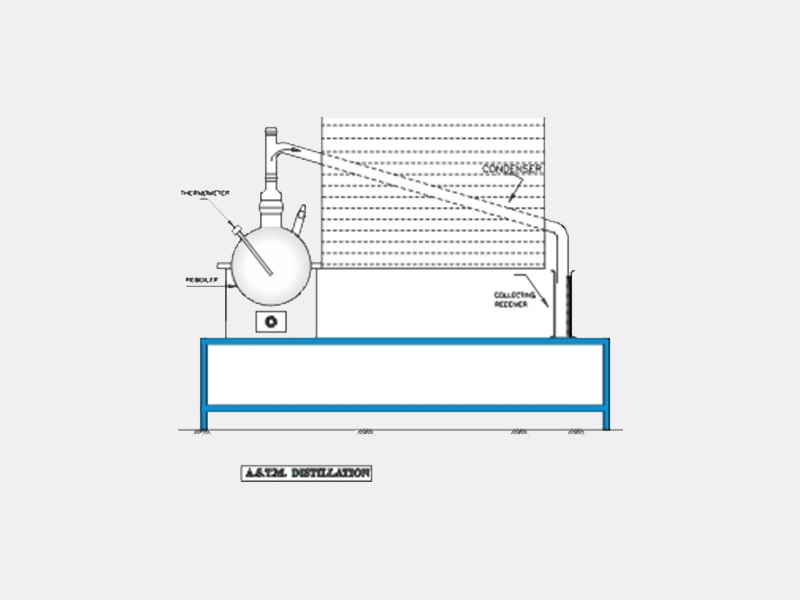

EXPERIMENTAL SETUP :

• Reboiler : Borosilicate glass round bottom flask
• Distillate Receiver : Borosilicate glass measuring cylinder
• Condenser : Borosilicate glass double pipe condenser
• Heating Mantle : Aluminum body with fiber cloth and with Thermostat
• Digital Temp Indicator : 0 – 400 0 C .
• Temp Sensor : CR/AL
• Type Piping : PVC
• Setup Mounting : On sturdy MS stand with powder coated

SERVICE REQUIRED :

Power Supply : 230 V, 50 Hz, A. C.

CHEMICALS REQUIRED:

Methanol Or Ethanol

SPACE REQUIRED :

1.5 m. (L) x 1 m(W) X 2 m (H)

WEIGHT : @ 45 Kg
