DESCRIPTION :

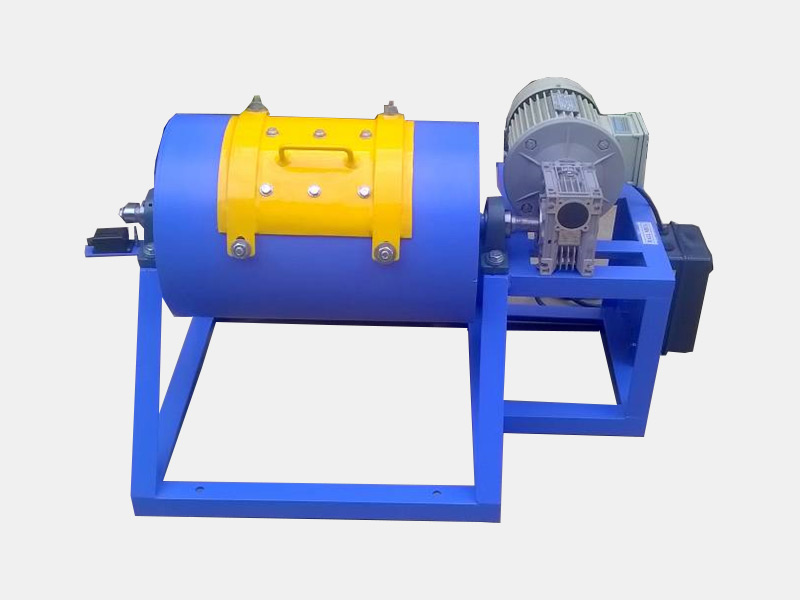

Ball mills are also called pebble mills. They are used to produce a product that would pass 200 Mesh size. Ball mill consists of a cylindrical shape, slowly revolving about horizontal axis, filled to about it ‘s ½ of the volume with a solid grinding medium, balls. The shell is usually made up of carbon steel and may be lined with procelin, silica rock or rubber or may not be lined. The grinding media is pebbles or percelin or zircon or steel Balls depending upon the material to be ground.
RANGE OF EXPERIMENTS TO BE CARRIED OUT :
EXPERIMENTAL SETUP :
| Shell Diameter | 300mm |
| Shell Length | 300mm |
| Shell Thickness | 6mm0-420 mm |
| Shell Moc | MS |
| Motor | A reduction gear driven by a motor rotates the ball mill Bolls : 6 nos , |
| Tray | 1no for collecting Sample |
| RPM Counter | 1 No |
SERVICE REQUIRED :
Power Supply : 440 V. 3 phase, 50 cycles AC supply
SPACE REQUIRED :
1.5 m. ( L) x 1.0 m (W) X 1.0 m (H).
WEIGHT : @ 75 Kg
