DESCRIPTION :

Evaporation is a process for concentrating a solution by vaporizing part or all of the solvent. In most of the cast s the solvent is water. The Pan Evaporator set-up is designed to study the fundamentals of evaporation process. The set-up consists of a jacketed pan evaporator made of stainless steel and an electrically heated steam generator of suitable capacity. To evaporate the solution in pan, steam is allowed to enter in the jacket using a control valve. Condensate is collected from steam trap for energy measurement. Tilting is done by a worm gear arrangement to empty the pan.

RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To study Open Pan Evaporator.

EXPERIMENTAL SETUP :

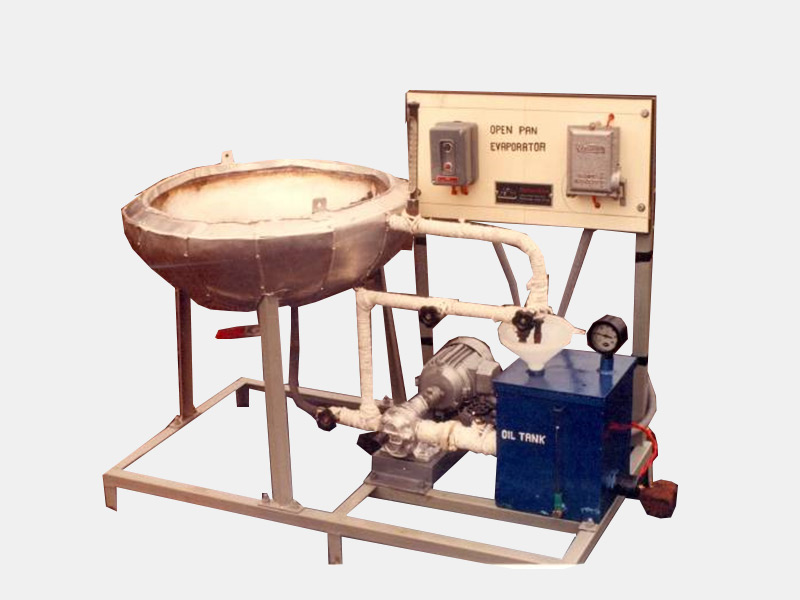

The equipment consists of SS-315 open pan evaporator of 25 Ltr. capacity with bottom center discharge & jacket heating, with three ½” dia. topping for inlet, outlet, & air vent with sturdy M.S. stand.

SERVICE REQUIRED :

Power Supply : 230 V. 1 phase, 50 cycles AC supply

SPACE REQUIRED :

1.0 m. ( L) x 1.0 m (W) X 1.0 m (H).

WEIGHT : @ 65 Kg
