DESCRIPTION :

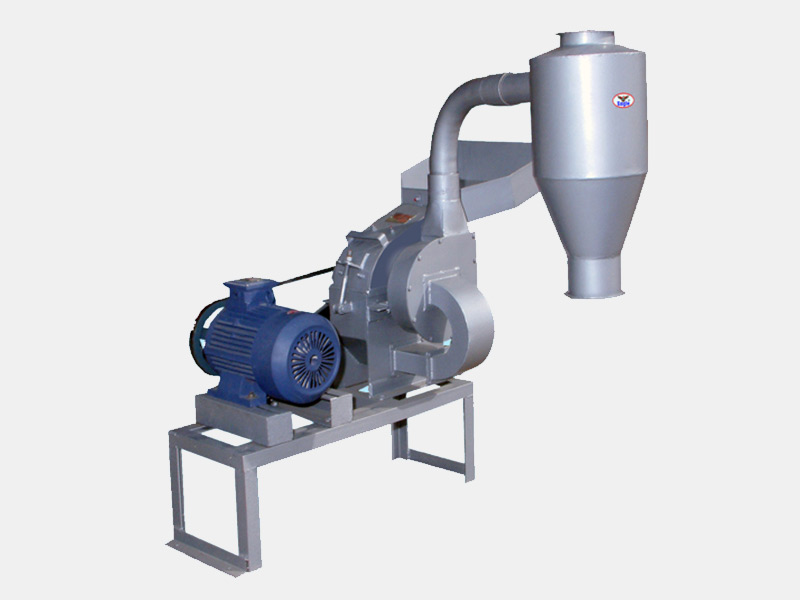

A hammer mill is a mill whose purpose is to shred or crush aggregate material into smaller pieces by the repeated blows of little hammers . A hammer mill is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size.

RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To study the Hammer Mill.

EXPERIMENTAL SETUP :

Laboratory model – Swing type hinged hammers – Screw conveyor.
And feed hopper for feed –
Supporting structures.
Motor : 2HP
RPM : 2000 TO 4000 RPM

SERVICE REQUIRED :

Power Supply : 440 V. 3 phase, 50 cycles AC supply

SPACE REQUIRED :

1.5 m. ( L) x 1.0 m (W) X 1.0 m (H).

WEIGHT : @ 65 Kg
