DESCRIPTION :

Leaf Filters are ideal for Solid-Liquid Separation & work on principle of Precoating & pressure. Pre coating is done with the help of suitable filter aid about 0.5 to 1% ( Bleaching earth , supercel, Hyflo, super flo etc.) mixed with the liquid to be filtered. Unfiltered liquid is pumped into the filter vessel. Initially the filter aid starts forming a precoat layer on both sides of the filter leaves, until then cloudy material comes out of the Filter. Once the layer is formed , Pressure starts developing, restricting the impurities. Clear liquid flows from both sides into the leaves ( filter elements), flows along the tubular channel & gets discharged from Bottom of the leaf. All the leaves are mounted on a common manifold. The leaves are mounted vertically on a common manifold pipe, through which the filtered liquid flows out

RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To study the Leaf and Sparkle Filter.

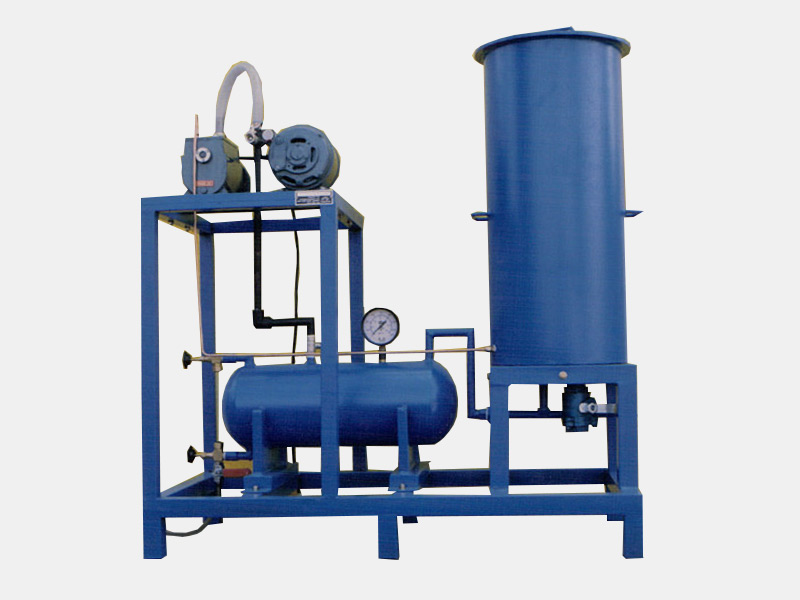

EXPERIMENTAL SETUP :

• Leaves : Made from SS304 material of rectangular shape
• Sparkler : Sparger type compressed air.
• Drum having 300mm dia x 450 mm length of S.S. 304 with S. S. 304 Material Screen.
• Filter cloth of Polypropiline or canvas having 2 number of zones
• 0.5 H.P. Motor is used with drum driven arrangement. Feed tank of S.S.304 material having 60 Ltr. Capacity with Feed ump.
• Low Speed Stirrer of ½ H. P. capacity for feed tank & Geared pump for feeding purpose to drum
• Filtrate receiver constructed in S. S. 304 having 10 Ltr. Capacity.
• Vacuum pump of ½ HP capacity with sufficient G.I. or copper piping.
• Control panel & rigid M.S. stand.

SERVICE REQUIRED :

Power Supply : 230 V. 1 phase, 50 cycles AC supply

SPACE REQUIRED :

1.5 m. ( L) x 1.5 m (W) X 1.5 m (H).

WEIGHT : @ 85 Kg
