DESCRIPTION :
Rotary vacuum filter drum consists of a drum rotating in a tub of liquid to be filtered. The technique is well suited to slurries, and liquids with a high solid content, which could clog other forms of filter. The drum is pre-coated with a filter aid. After pre-coat has been applied, the liquid to be filtered is sent to the tub below the drum. The drum rotates through the liquid and the vacuum sucks liquid and solids onto the drum pre-coat surface, the liquid portion is "sucked" by the vacuum through the filter media to the internal portion of the drum, and the filtrate pumped away. The solids adhere to the outside of the drum, which then passes a knife, cutting off the solids and a small portion of the filter media to reveal a fresh media surface that will enter the liquid as the drum rotates .
RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the Rotary Drum Filter.
EXPERIMENTAL SETUP :

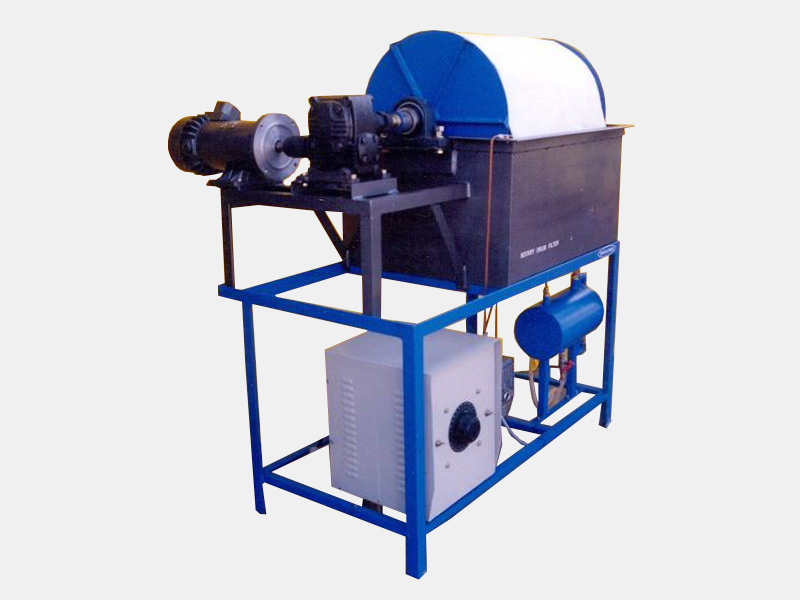

- Drum having 300mm dia x 450 mm length of S.S. 304 with S. S. 304 Material Screen.
- Filter cloth of Polypropiline or canvas having 8 number of zones
- 0.5 H.P. Motor is used with drum driven arrangement. Feed tank of S.S.304 material having 60 Ltr. Capacity with Feed ump.
- Low Speed Stirrer of ½ H. P. capacity for feed tank & Geared pump for feeding purpose to drum
- Filtrate receiver constructed in S. S. 304 having 10 Ltr. Capacity.
- Vacuum pump of ½ HP capacity with sufficient G.I. or copper piping.
- Control panel & rigid M.S. stand.
- Instruction Manual : 1 Copy
SERVICE REQUIRED :
Power Supply : 230 V. 1 phase, 50 cycles AC supply
SPACE REQUIRED :
1.5 m. ( L) x 1.5 m (W) X 1.5 m (H).
WEIGHT : @ 150 Kg
