DESCRIPTION :

A universal testing machine(UTM ) is used to test the tensile strength & compressive strength of materials. The "universal" part of the name reflects it can perform many standard tensile & compression tests on materials, components, & structures.

RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To Perform Tension Test
• To Perform Compression Test
• To Perform Transverse Test
• To Perform Bending Test

TECHNICAL DESCRIPTION :

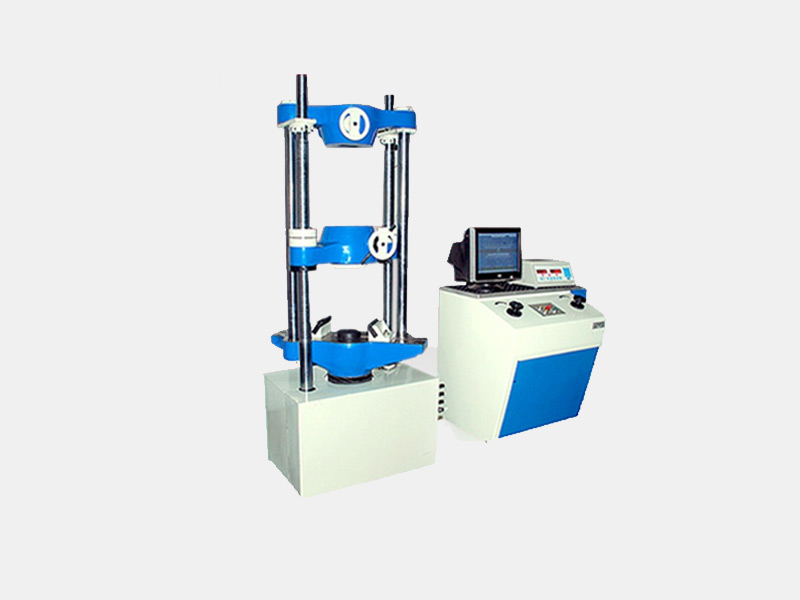

The Universal testing machine comprises of Load Frame consisting of 2 strong supports for machine. Cross head - A movable cross head (crosshead) is controlled to move up or down Electronic Panel to measure the load Test fixtures, specimen holding jaws

FEATURES:

• Loading accuracy as high as + 1%.
• Straining rate to cover a wide range of materials.
• Continuous roll type load elongation recorder.
• High reading accuracy due to large size and design of dial.
• Simple controls to facilitate ease of operation.
• Fully enclosed and protected load-measuring system.
• Wide range of standard and special accessories including load stabilizer.
• Robust straining frame.
• Suitable for standard specimen and also structures.
• Motorised UP/DOWN movement of lower crosshead to enable easy and rapid fixing of test specimen.

Software facilities:

• Windows based , Menu driven software with GUI ( Graphical User Interface )
• Onec PC connected, All operations from PC. All Displays, Keys operation from PC.
• View Report, Print Report Facility. Facility to add Customers Logo in certificate.
• Load Unit Selection (kN, kg, pounds) Displacement unit ( mm, inch)
• Online Graph Auto scaling. On line 2 graphs with Extensometer facility.
• Statistics include Water fall dig. for curve, Histogram, variation, Mean Deviation on selected result like Ult. Load, Ult. Stress, Elongation etc. Facility to get Batch report as per selection.
• Data bank define facility for continious production specimans. Here you can get statistics over long period like monthly, yearly etc.
• Facility to select different graphs. Plot load, Displacement Vs Time etc
• Facility for Graph comparision ( Compare with standard by plotting both simulatneously). Graph zoom, point tracing, Selected portion zoom etc.
• Modulus data, yield calculation by method selection etc.
• Facility to select different speciman types like Round solid, Round Hollow, Rectangular, Irregular shape, TMT etc. Facility for Sample Id. , customer details
• Results with Standard Test includes Ultimate Load, Displacement at ult. Load, Max. Displacement. Ult. stress, % Elongation, % Reduction in Area, Yield with Method selection. ( If speciman does not have distinct yield it is recommended to use Extensometer for Yield calculation) Extensometer Test : Yield, proof ( with offset selection)

Capacity Of UTM: 100 KN TO 2000KN

SERVICE REQUIRED :

Power Supply :440 V, 50 Hz, A.C.Three Phase , Foundation As Per Drawing

SPACE REQUIRED :

2 m. ( L) x 2.0 m (W) X 3 m (H).

WEIGHT : @ 2000 Kg
