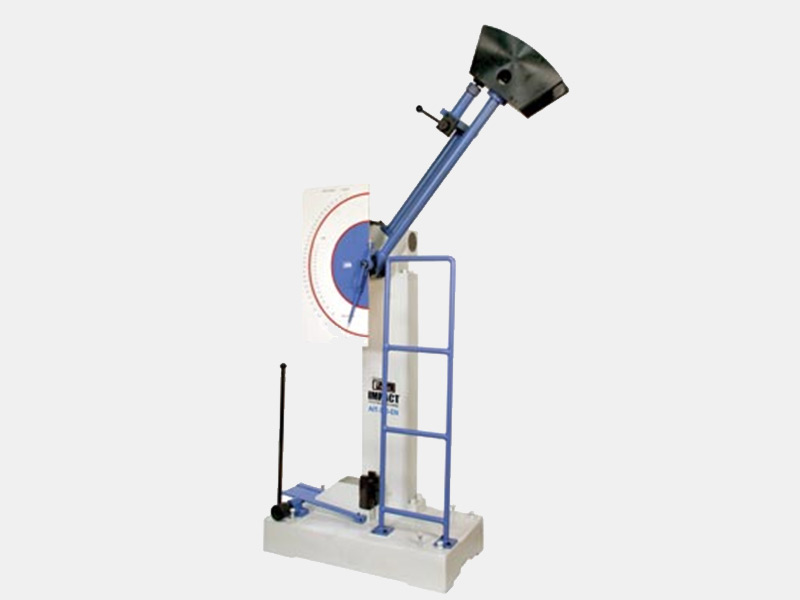

DESCRIPTION :
The Charpy impact test, also known as the Charpy V-notch test, is a standardized high strain-rate test which determines the amount of energy absorbed by a material during fracture. This absorbed energy is a measure of a given materials notch toughness and acts as a tool to study temperature-dependent ductile-brittle transition. It is widely applied in industry
RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Perform Charpy and Izod Impact Test.
TECHNICAL DESCRIPTION :
| Pendulum drop angle | 1400 for Charpy Test and 900 for impact test |
| Pendulum effective Weight | 21 kg |
| Pendulum impact energy | 300J for Charpy Test and 168J for impact test |
| Min. scale graduation | 2J |
Distance of axis of pendulum rotation from Center of specimen/to specimen hit by pendulum :815 mm
SERVICE REQUIRED :
Power Supply : Foundation As Per Drawing
SPACE REQUIRED :
1.5 m. ( L) x 1.0 m (W) X 1.7 m (H).
WEIGHT : @ 200 Kg
