DESCRIPTION :

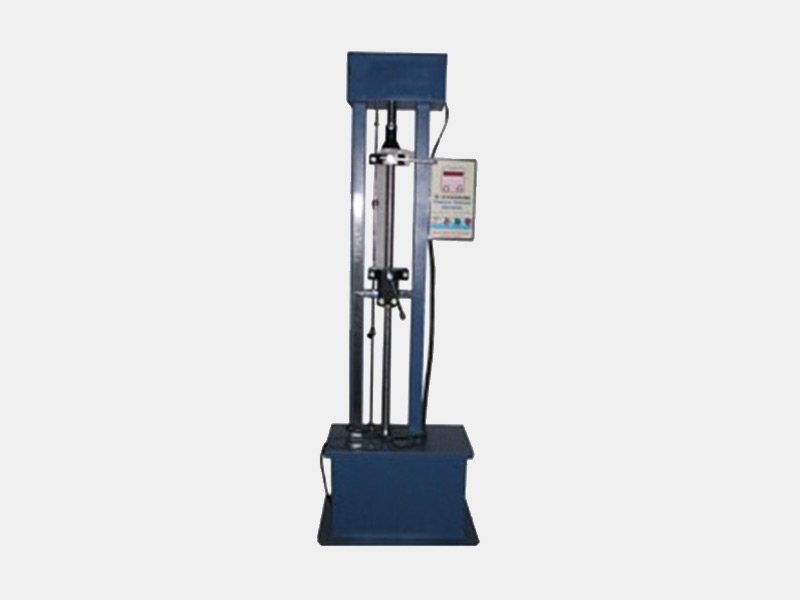

Tensile Testing Machine is designed for conducting Tensile & compression test on various products like Wires, Tubes, Sheet material, Textile material, Rubber, Plastic, Cables, Conductors, leather, asbestos paper, Plywood, Metals etc. The force measurement is by pendulum dynamometer system. Force can be applied to specimen by electric motor through gear box and pulleys. The safety control devices are incorporated.
RANGE OF EXPERIMENTS TO BE CARRIED OUT :
TECHNICAL DESCRIPTION :
| Test Range | 10 N to 500 N |
| Elongation Scale Least count | 1 mm |
| Grip Separation | 25 mm Minimum , 1000 mm Maximum |
Load measurement : With the help of a load cell and a digital display having arrangement to display the maximum load exerted during the test
Elongation measurement : Measured between grips on a scale from 0 to 1000 x 1 mm.
Electric controls : Push button controls for up and down movement and stopping with The help of contactors. Micro-switches for over-travel protection, over-load protection. Automatic stopping of motor on failure of test specimen
SERVICE REQUIRED :
Power Supply : 440v , Three Phase , 50 hz , Foundation As Per Drawing
SPACE REQUIRED :
1.5 m. ( L) x 1.0 m (W) X 1.7 m (H).
WEIGHT : @ 200 Kg
