DESCRIPTION :

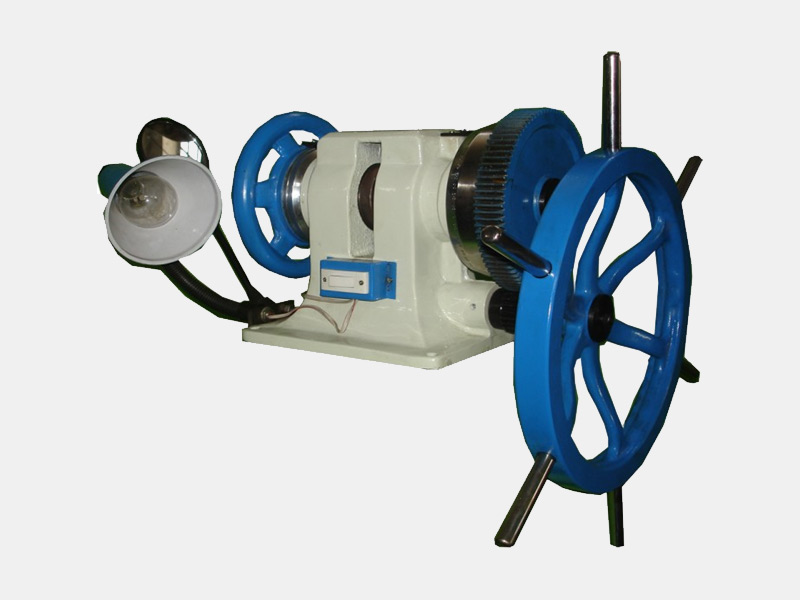

The Erichsen cupping test is a ductility test , which is used to evaluate the ability of metallic sheets and strips to under go plastic deformation in stretch forming. The test consists of forming an indentation by pressing a punch with spherical end against a test piece clamped between a blank holder and die , until a through crack appears. The depth of cup is measured.
RANGE OF EXPERIMENTS TO BE CARRIED OUT :
TECHNICAL DESCRIPTION :
| Width of sample mm | 70-90/td> |
| Thickness of sample mm | 0.1-2 |
| Least count mm | 0.01 |
| Overall dimension ( approx.) mm | 450 x 500 x 500 |
| Net Weight ( approx.) Kg | 20 |
SERVICE REQUIRED :
Power Supply : 230v , Three Phase , 50 hz , Foundation As Per Drawing
SPACE REQUIRED :
1 m. ( L) x 1.0 m (W) X 1 m (H).
WEIGHT : @ 30 Kg
